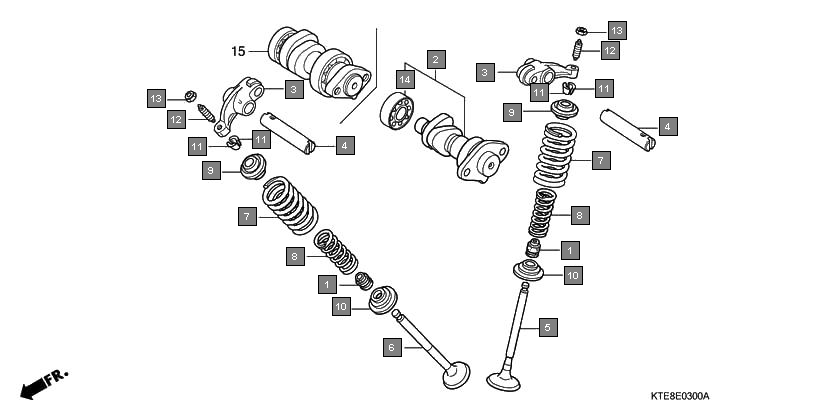

Motorcycles CBF Stunner CBF125MA Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 14430KSP910 ARM COMP., VALVE ROCKER 2
3 14451KRM840 SHAFT, ROCKER ARM 2
4 14711KTE910 VALVE, IN. 1
5 14721KWF900 VALVE, EX. 1
6 14751KWF840 SPRING, VALVE OUTER 2
7 14761KWF840 SPRING, VALVE INNER 2
8 14771KSP910 RETAINER, VALVE SPRING 2
9 14777KSP910 SEAT, VALVE SPRING 2
10 14781MA6000 COTTER, VALVE 4
11 90012KK3830 SCREW, TAPPET ADJUSTING 2
12 90206KSP910 NUT, TAPPET ADJUSTING 2
13 14100KWF901 CAMSHAFT COMP. 1
14 14100KVE900 CAMSHAFT COMP. 1
