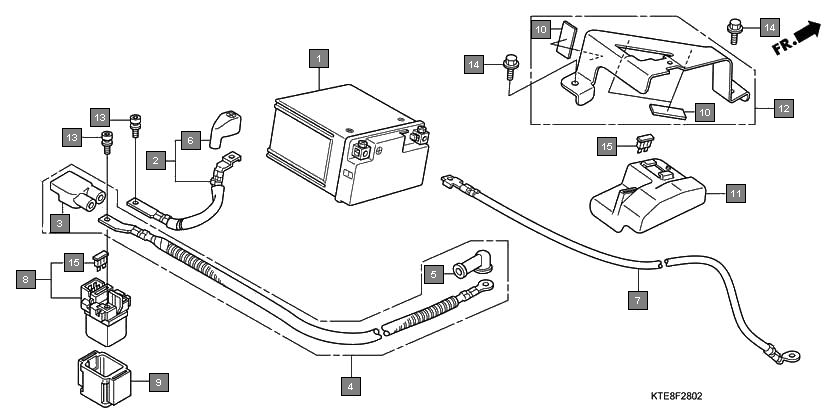

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31500KW3677 | BATTERY ASSY.(YTX7L-BS) (TIANJIN YUASA) | 1 |
2 | 32401KWF950 | CABLE, STARTER MAGNETIC BATTERY | 1 |
3 | 32406KVN900 | COVER, STARTER MAGNETIC TERMINAL | 1 |
4 | 32410KWF950 | CABLE, STARTER MOTOR | 1 |
5 | 32411253000 | COVER, STARTER MOTOR TERMINAL | 1 |
6 | 32413KRJ760 | COVER, BATTERY TERMINAL | 1 |
7 | 32601KWF950 | CABLE, BATTERY EARTH | 1 |
8 | 35850KEB620 | SWITCH ASSY., STARTER MAGNETIC | 1 |
9 | 35856KAB000 | RUBBER, SHOCK | 1 |
10 | 50383GB6300 | RUBBER, BATTERY | 3 |
11 | 80110KWF950 | COVER, BATTERY | 1 |
12 | 80111KWF950 | BAND, BATTERY | 1 |
13 | 90111MR5000 | BOLT, SOCKET, 5X9 | 2 |
14 | 957010601207 | BOLT, FLANGE, 6X12 | 2 |
15 | 9820032000 | FUSE, BLADE(20A) | 2 |
