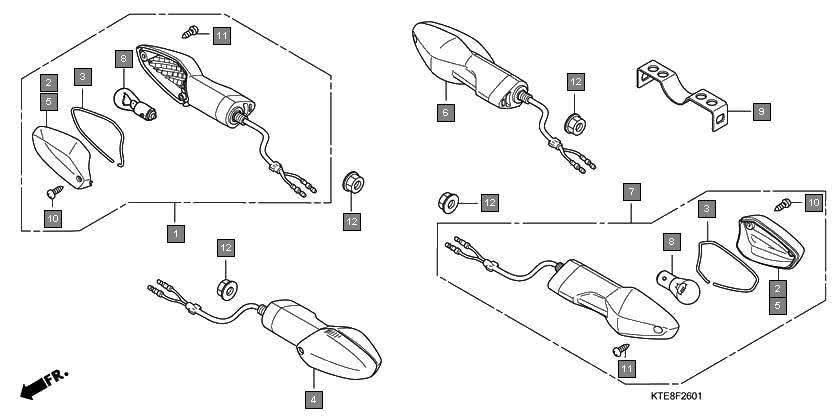

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33400KWF901 | WINKER ASSY., R. FR.(12V 21W) | 1 |
2 | 33402KWF901 | LENS, R. WINKER (R. FR./L. RR.) | 2 |
3 | 33406KWF901 | SEAL, GASKET | 4 |
4 | 33450KWF901 | WINKER ASSY., L. FR.(12V 21W) | 1 |
5 | 33452KWF901 | LENS, L. WINKER (L. FR./R. RR.) | 2 |
6 | 33600KWF901 | WINKER ASSY., R. RR.(12V 21W) | 1 |
7 | 33650KWF901 | WINKER ASSY., L. RR.(12V 21W) | 1 |
8 | 34904KTE910 | BULB, WINKER(AMBER)(12V 21W) | 4 |
9 | 34904KTE920 | BULB, WINKER(AMBER)(12V 21W)(PY21W) | 4 |
10 | 50186KWF900 | STAY, RR. WINKER | 1 |
11 | 9390334310 | SCREW, TAPPING, 4X12 | 4 |
12 | 9390334380 | SCREW, TAPPING, 4X12 | 4 |
13 | 9405010000 | NUT, FLANGE, 10MM | 4 |
