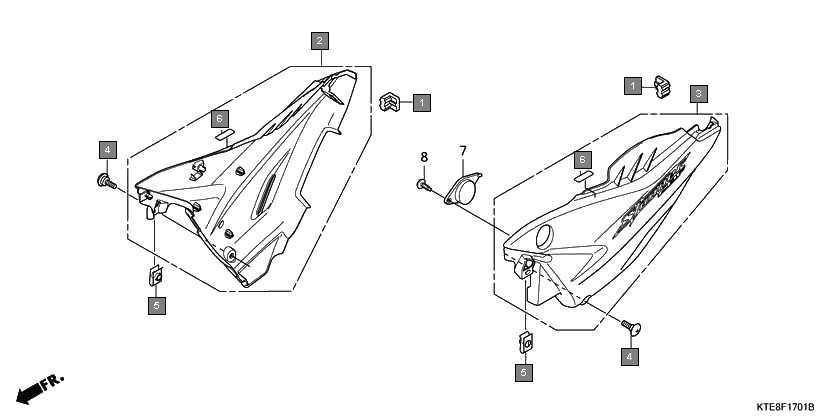

Motorcycles CBF Stunner CBF125M9/MF Frame Side cover(2)
Ref.No. Part No. Description Oty
1 83502KCC900 GROMMET, SIDE COVER 2
2 83700KWF900ZB COVER SET, R. SIDE(WL) 1
3 83700KWF960ZA COVER SET, R. SIDE(WL) *NH303M* MAT AXIS GRAY METALLIC 1
4 83800KWF900ZB COVER SET, L. SIDE(WL) 1
5 83800KWF960ZA COVER SET, L. SIDE(WL) *NH303M* MAT AXIS GRAY METALLIC 1
6 90104GT8600 SCREW, SPECIAL, 6X14 2
7 90104KT2000 SCREW, SPECIAL, 6X14 2
8 90320747000 NUT, SPRING, 6MM 2
9 83580KWF900 FILM, PROTECTION 2
10 83650KWF950ZA CAP, COCK HOLE 1
11 9390334320 SCREW, TAPPING, 4X12 1
