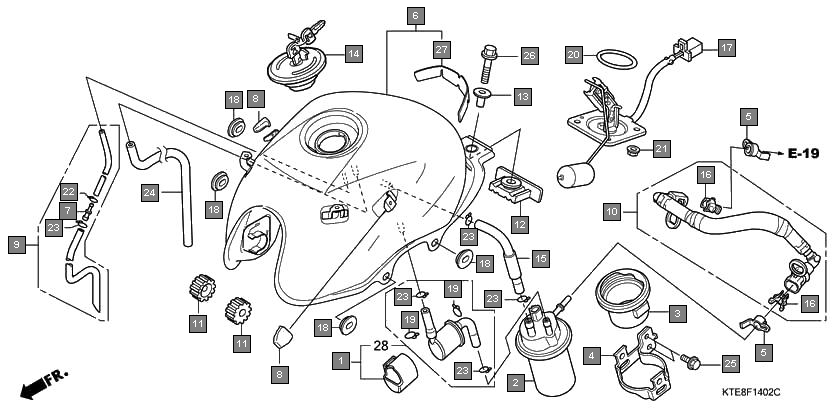

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06170KWF960 | STRAINER ASSY., FUEL | 1 |
| 2 | 16700KWF961 | PUMP ASSY., FUEL | 1 |
| 3 | 16711KWF950 | RUBBER, FUEL PUMP SHOCK | 1 |
| 4 | 16712KWF960 | STAY, FUEL PUMP | 1 |
| 5 | 16718KTW900 | DAMPER A, CONNECTOR | 2 |
| 6 | 17500KWF960ZA | TANK SET, FUEL *NH1* BLACK | 1 |
| 7 | 17525KVE900 | JOINT, TUBE | 1 |
| 8 | 17529KVN900 | RUBBER, SHROUD MOUNTING | 2 |
| 9 | 17530KWF900 | TUBE ASSY., BREATHER | 1 |
| 10 | 17570KWF951 | HOSE COMP., FUEL FEED | 1 |
| 11 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
| 12 | 17613KTE910 | RUBBER, FUEL TANK RR. | 1 |
| 13 | 17614KR3000 | COLLAR, FUEL TANK MOUNTING | 1 |
| 14 | 17620KWF901 | CAP COMP., FUEL FILLER | 1 |
| 15 | 17682KWF950 | TUBE, FUEL PUMP BREATHER | 1 |
| 16 | 17711S0XA31 | RETAINER(GREEN)(TOKAI) | 2 |
| 17 | 37800KWF950 | FUEL UNIT | 1 |
| 18 | 83551300000 | GROMMET, AIR CLEANER CASE | 4 |
| 19 | 90652MB1000 | CLIP, TUBE | 2 |
| 20 | 91305443740 | O-RING, 39.5X5 | 1 |
| 21 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 22 | 9500202080 | CLIP, TUBE(B8) | 1 |
| 23 | 9500202130 | CLIP, TUBE(B12.5) | 5 |
| 24 | 17683KWF900 | TUBE, DRAIN | 1 |
| 25 | 957010601200 | BOLT, FLANGE, 6X12 | 2 |
| 26 | 957010802800 | BOLT, FLANGE, 8X28 | 1 |
| 27 | 17506KWF900 | FILM, TANK PROTECTOR | 1 |
| 28 | 06160KWF305 | FILTER KIT, FUEL | 1 |
