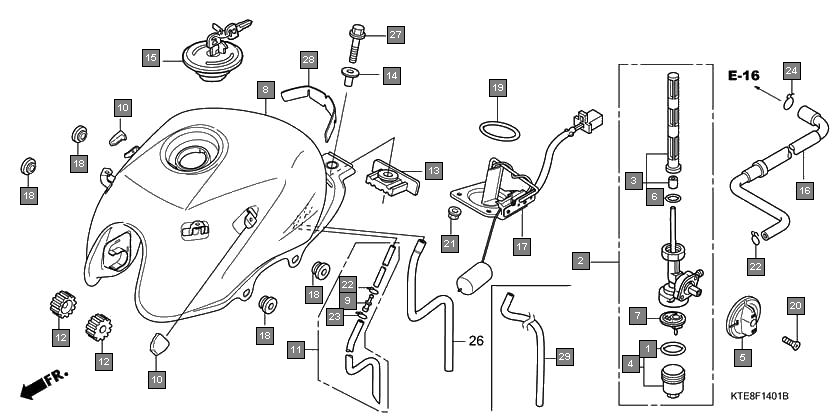

Motorcycles CBF Stunner CBF125M9/MF Frame Fuel tank(2)
Ref.No. Part No. Description Oty
1 16173001004 PACKING, FUEL STRAINER CUP 1
2 16950KWF900 COCK ASSY., FUEL 1
3 16952KWF900 SCREEN SET, FUEL STRAINER 1
4 16953KWF900 CUP SET, FUEL STRAINER 1
5 16955KWF900 LEVER, FUEL COCK 1
6 16958397771 O-RING, 9.0X1.3 1
7 16959471831 FILTER, CUP 1
8 17520KWF930ZJ TANK SET, FUEL(WL)*Y206P* PEARL SPORTS YELLOW 1
9 17520KWF930ZE TANK SET, FUEL(WL) *NHB06M* SPACE SILVER METALLIC 1
10 17520KWF930ZF TANK SET, FUEL(WL) *NH1* BLACK 1
11 17520KWF930ZG TANK SET, FUEL(WL) *R321* SPORTS RED 1
12 17520KWF930ZH TANK SET, FUEL(WL) *Y163P* PEARL FLASH YELLOW 1
13 17525KVE900 JOINT, TUBE 1
14 17529KVN900 RUBBER, SHROUD MOUNTING 2
15 17530KWF900 TUBE ASSY., BREATHER 1
16 17611KFN850 CUSHION, FR. FUEL TANK 2
17 17613KTE910 RUBBER, FUEL TANK RR. 1
18 17614KR3000 COLLAR, FUEL TANK MOUNTING 1
19 17620KWF901 CAP COMP., FUEL FILLER 1
20 17681KWF900 TUBE COMP., FUEL 1
21 37800KWF900 FUEL UNIT 1
22 83551300000 GROMMET, AIR CLEANER CASE 4
23 91305443740 O-RING, 39.5X5 1
24 93500040120G SCREW, PAN, 4X12 1
25 9405006000 NUT, FLANGE, 6MM 4
26 9500202080 CLIP, TUBE(B8) 2
27 9500202130 CLIP, TUBE(B12.5) 1
28 9500250000 CLIP, TUBE(C9) 1
29 950058070020 TUBE, 8X700(95005-80001-20M) 1
30 957010802800 BOLT, FLANGE, 8X28 1
31 17506KWF900 FILM, TANK PROTECTOR 1
32 17683KWF900 TUBE, DRAIN 1
