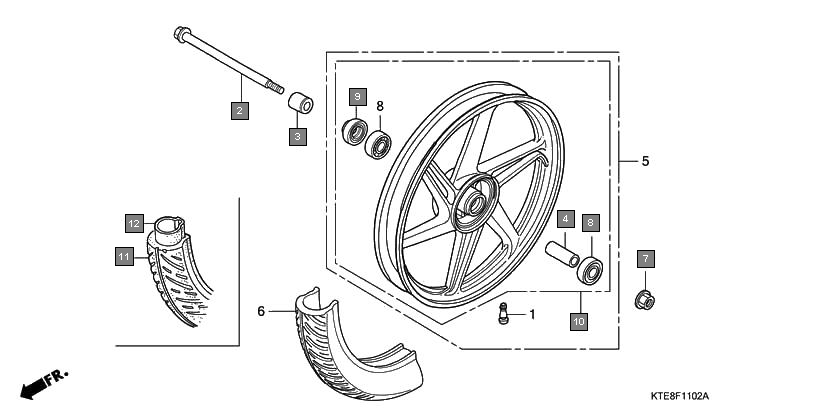

Motorcycles CBF Stunner CBF125M9/MF Frame Front wheel(3)
Ref.No. Part No. Description Oty
1 42753KWF901 VALVE, RIM(TRITON) 1
2 44301KPL900 AXLE, FR. WHEEL 1
3 44311KSP900 COLLAR, FR. WHEEL SIDE 1
4 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
5 44650KWF900 WHEEL SUB ASSY., FR. 1
6 44711KWF930 TIRE, FR.(TVS) (80/100-17 M/C 46P) 1
7 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
8 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
9 961406301010 BEARING, RADIAL BALL, 6301U 2
10 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
11 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
