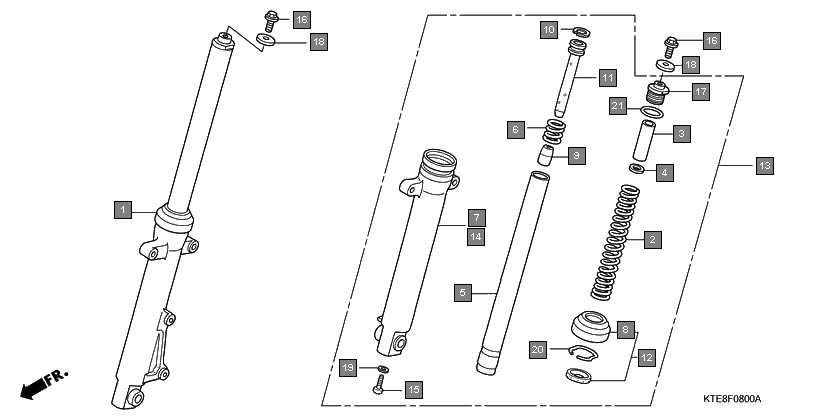

Motorcycles CBF Stunner CBF125M9/MF Frame Front fork
Ref.No. Part No. Description Oty
1 51400KWF961 FORK ASSY., R. FR.(SHOWA) 1
2 51400KWF901 FORK ASSY., R. FR.(SHOWA) 1
3 51400KWF931 FORK ASSY., R. FR.(SHOWA) 1
4 51401KWF901 SPRING, FR. FORK 2
5 51403KCC901 COLLAR, SPRING(SHOWA) 2
6 51403447731 PLATE, SPRING JOINT(SHOWA) 2
7 51410KWF901 PIPE COMP., FR. FORK 2
8 51412KAG901 SPRING, REBOUND(SHOWA) 2
9 51420KWF961 CASE, R. FR. BOTTOM 1
10 51420KWF901 CASE, R. FR. BOTTOM 1
11 51420KWF931 CASE, R. FR. BOTTOM 1
12 51425KST901 SEAL, DUST 2
13 51432KST901 PIECE, OIL LOCK 2
14 51437KVN901 RING, PISTON 2
15 51440KWF901 PIPE, SEAT 2
16 51490KST305 SEAL SET, FR. FORK 2
17 51500KWF961 FORK ASSY., L. FR.(SHOWA) 1
18 51500KWF901 FORK ASSY., L. FR.(SHOWA) 1
19 51500KWF931 FORK ASSY., L. FR.(SHOWA) 1
20 51520KWF961 CASE, L. FR. BOTTOM 1
21 51520KWF901 CASE, L. FR. BOTTOM 1
22 51520KWF931 CASE, L. FR. BOTTOM 1
23 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
24 90123KRM860 BOLT, FR. FORK 2
25 90123KSP901 BOLT A, FR. FORK 2
26 90521KSP900 WASHER, 10.3MM 2
27 90544439930 PACKING(SHOWA) 2
28 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
29 91356KAG901 O-RING(SHOWA) 2
