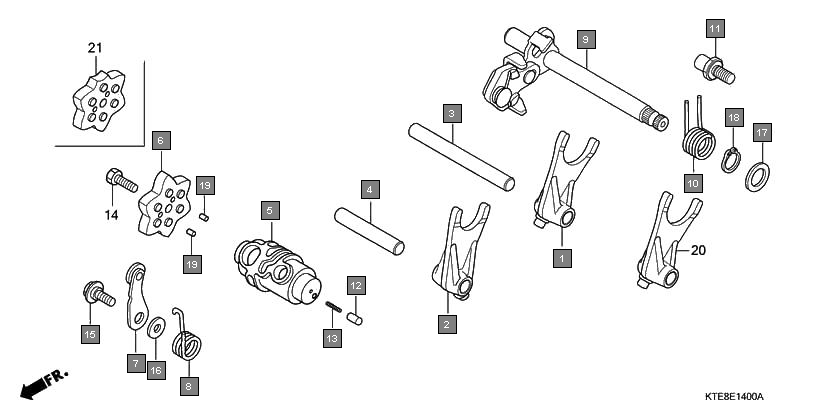

Motorcycles CBF Stunner CBF125M9/MF Engine Gearshift drum
Ref.No. Part No. Description Oty
1 24211KRM840 FORK, GEARSHIFT 1
2 24212KWF900 FORK, CENTER GEARSHIFT 1
3 24241KRM840 SHAFT A, GEARSHIFT FORK 1
4 24242KRM840 SHAFT B, GEARSHIFT FORK 1
5 24301KSP910 DRUM, GEARSHIFT 1
6 24430KRMB10 STOPPER COMP., GEARSHIFT DRUM 1
7 24436KWF900 SPRING, SHIFT DRUM STOPPER 1
8 24610KRM840 SPINDLE COMP., GEARSHIFT 1
9 24651KSP910 SPRING, GEARSHIFT RETURN 1
10 24652KRM840 PIN, SHIFT RETURN SPRING 1
11 35751KPH900 CAP, CHANGE SWITCH CONTACT 1
12 35752KRM840 SPRING, CHANGE SWITCH CONTACT 1
13 90003KSP910 BOLT, HEX., 6X20 1
14 90003KVS900 BOLT, HEX., 6X20 1
15 90022KRM840 PIVOT, SHIFT DRUM STOPPER ARM 1
16 90417360000 WASHER, DRUM STOPPER 1
17 90457KRM840 WASHER, 14MM 1
18 9451014000 CIRCLIP, EXTERNAL, 14MM 1
19 9622030085 ROLLER, 3X8.5 2
20 24410KVS900 PLATE COMP., GEARSHIFT DRUM STOPPER 1
