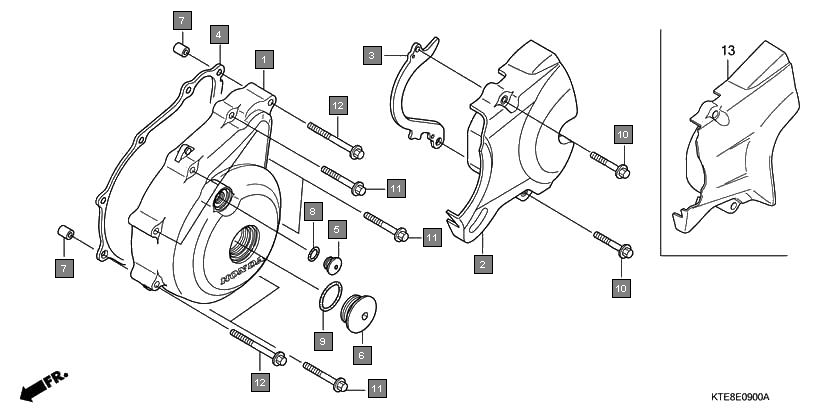

Motorcycles CBF Stunner CBF125M9/MF Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341KWF960 COVER, L. CRANKCASE 1
2 11341KWF900 COVER, L. CRANKCASE 1
3 11365KTE910 GUIDE, DRIVE CHAIN 1
4 11365KWF940 GUIDE, DRIVE CHAIN 1
5 11395KRM840 GASKET, L. COVER 1
6 90084MN8010 CAP, 14MM 1
7 90087KSP860 CAP, 32MM 1
8 91105KSP910 DOWEL PIN, 8X14 2
9 91303KRM840 O-RING, 13.8X2.5 1
10 91305KRM840 O-RING, 31.7X2.4 1
11 960010603000 BOLT, FLANGE, 6X30 2
12 90013KWF940 BOLT, FLANGE, 6X30 2
13 960010603500 BOLT, FLANGE, 6X35 7
14 90014KWF940 BOLT, FLANGE, 6X35 7
15 960010604500 BOLT, FLANGE, 6X45 2
16 90015KWF940 BOLT, FLANGE, 6X45 2
17 11360KWF960 COVER COMP., L. RR. 1
18 11360KWF900 COVER COMP., L. RR. 1
