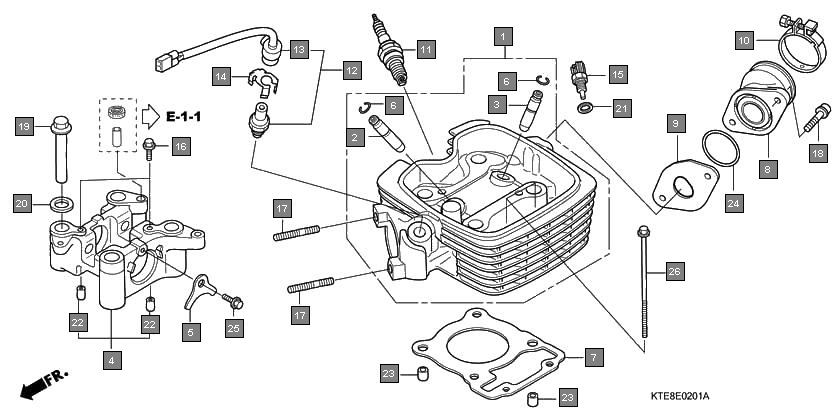

Motorcycles CBF Stunner CBF125M9/MF Engine Cylinder head(throttle body)
Ref.No. Part No. Description Oty
1 12200KWF960 HEAD COMP., CYLINDER 1
2 12204KRM305 GUIDE, VALVE(O.S.)(EXHAUST SIDE) 1
3 12205KSP305 GUIDE, IN. VALVE(O.S.) 1
4 12210KTE910 HOLDER COMP., CAMSHAFT 1
5 12212KRM840 PLATE, STOPPER 1
6 12213KSP910 CLIP, VALVE GUIDE 2
7 12251KTE911 GASKET, CYLINDER HEAD (NIPPON LEAKLESS) 1
8 16210KWF942 INSULATOR COMP., THROTTLE BODY 1
9 16214KWF940 GASKET, CARBURETOR INSULATOR 1
10 16217KSP910 BAND, INSULATOR 1
11 31906KTE911 PLUG, SPARK(UR6DC) 1
12 31916KRM841 PLUG, SPARK(CPR8EA-9)(NGK) 1
13 31916KTE910 PLUG, SPARK(UR5DC) 1
14 31917KPH901 PLUG, SPARK(CPR7EA-9)(NGK) 1
15 36532KWF941 SENSOR, OXYGEN 1
16 36533KWF941 CORD COMP., OXYGEN SENSOR 1
17 36538KWF940 COVER, O2 SENSOR 1
18 37750KPH701 SENSOR ASSY., THERMOSTAT OIL (PANASONIC) 1
19 90002KRM840 BOLT, FLANGE, 5X14 2
20 90040KSP910 BOLT, STUD, 8X22 2
21 90091KWF940 BOLT, FLANGE SOCKET, 6X22 2
22 90306KRM840 NUT, CYLINDER HEAD 4
23 90404KPTA00 WASHER, PLAIN, 12MM 4
24 90443MB0000 WASHER, SEALING, 10MM 1
25 90704KRM840 DOWEL PIN, 6X10 2
26 9430206100 DOWEL PIN, 6X10 2
27 9430306100 DOWEL PIN, 6X10 2
28 91106KSP910 DOWEL PIN, 10X12 2
29 91304KRM840 O-RING, 33.5X3.0 1
30 957010601400 BOLT, FLANGE, 6X14 1
31 958010610500 BOLT, FLANGE, 6X105 2
