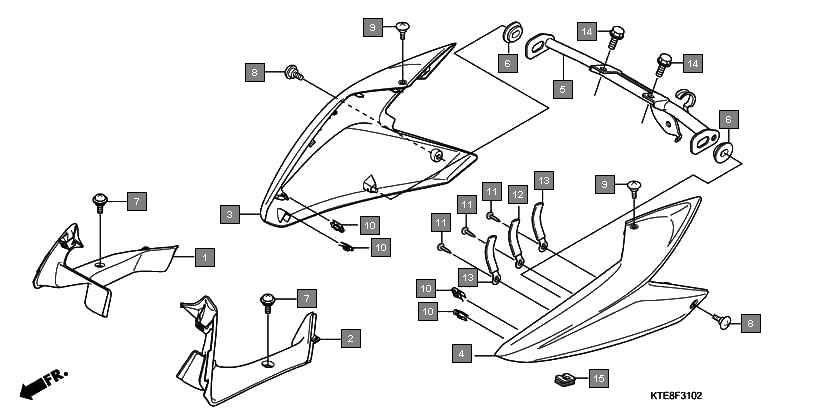

Motorcycles CBF Stunner CBF125MB Frame Front side cowl(cbf1259/m9/ma/mb/mc)
Ref.No. Part No. Description Oty
1 61330KWF900 PANEL, R. FR. COWL 1
2 61340KWF900 PANEL, L. FR. COWL 1
3 64201KWFN00ZA COWL SET, R. FR.(WL) *TYPE1* 1
4 64202KWFN00ZA COWL SET, L. FR.(WL) *TYPE1* 1
5 64520KWF900 STAY, LOWER COWL 1
6 83551300000 GROMMET, AIR CLEANER CASE 2
7 90101GE0000 SCREW, HINGE PATCH 2
8 90104GT8600 SCREW, SPECIAL, 6X14 2
9 90320GC3000 NUT, SPRING, 5MM 4
10 9390334320 SCREW, TAPPING, 4X12 3
11 9459121000 CLIP, WIRE, 2X100 1
12 9459127000 CLIP, 2X70 2
13 957010601200 BOLT, FLANGE, 6X12 2
14 957020601200 BOLT, FLANGE, 6X12 2
15 64550KWF900 GROMMET, SPEEDOMETER 1
