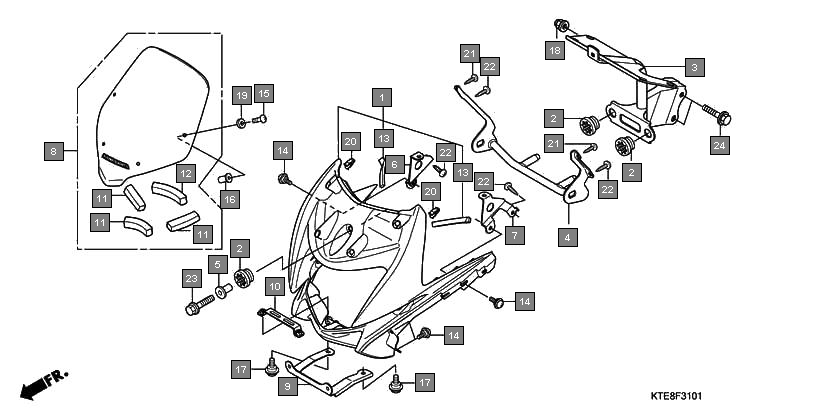

Motorcycles CBF Stunner CBF125MB Frame Front cowl(2)
Ref.No. Part No. Description Oty
1 61301KWF900ZA COWL, FR. *NH1* BLACK 1
2 61304KRY900 RUBBER, HEADLIGHT CASE MOUNTING 3
3 61311KWF840 STAY COMP., FR. COWL 1
4 61312KWF900 STAY COMP., FR. WINKER 1
5 61315KWF900 COLLAR, FR. COWL 1
6 61395KWF900 STAY, R. FR. PANEL 1
7 61396KWF900 STAY, L. FR. PANEL 1
8 64100KWF900ZA SCREEN SET, WIND(WL) *TYPE1* 1
9 64315KWF900 STAY, FR. NUMBER PLATE 1
10 64316KWF900 BRACKET, NUMBER PLATE STAY 1
11 64500KWF900 CUSHION A, WINDSCREEN 3
12 64510KWF900 CUSHION B, WINDSCREEN 1
13 64530KWF900 CUSHION, FR. COWL 2
14 90101GE0000 SCREW, HINGE PATCH 6
15 90109MT3000 SCREW, TRUSS, 5X20 4
16 90111MM9000 NUT, COWL SETTING, 5MM 4
17 90111KWF900 BOLT, FLANGE, 6MM 2
18 90301KBW940 NUT, CAP, 8MM 2
19 90504964000 WASHER, THRUST, 5MM 4
20 90666SDAA01 CLIP, SNAP FITTING(PO)(NATURAL) 2
21 9390334420 SCREW, TAPPING, 4X16 2
22 9390335320 SCREW, TAPPING, 5X16 4
23 957010602807 BOLT, FLANGE, 6X28 1
24 957020602807 BOLT, FLANGE, 6X28 1
25 958010804000 BOLT, FLANGE, 8X40 2
26 958020804000 BOLT, FLANGE, 8X40 2
