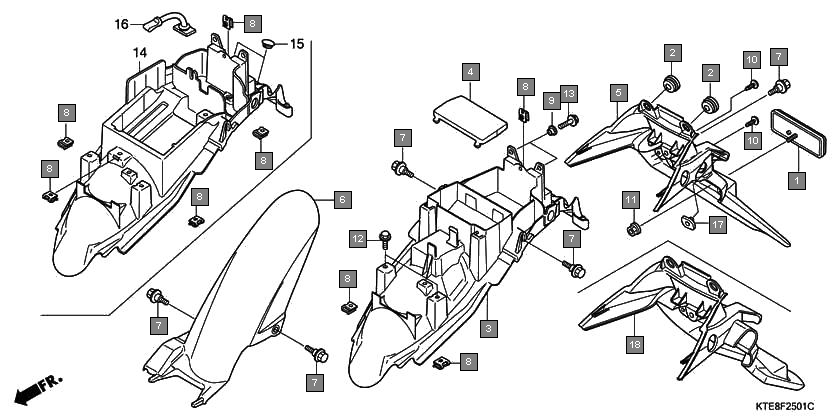

Motorcycles CBF Stunner CBF125MB Frame Rear fender(2)
Ref.No. Part No. Description Oty
1 33741KPL901 REFLECTOR, REFLEX 1
2 61304KRY900 RUBBER, HEADLIGHT CASE MOUNTING 2
3 80120KWF900ZA COVER SET, RR. FENDER(WL) *TYPE1* 1
4 80250KWF900 FENDER, HUGGER 1
5 90111KWF900 BOLT, FLANGE, 6MM 5
6 90320747000 NUT, SPRING, 6MM 5
7 90522KSP860 COLLAR, CHAIN CASE SETTING 2
8 9390335280 SCREW, TAPPING, 5X12 2
9 9405005000 NUT, FLANGE, 5MM 1
10 957010601600 BOLT, FLANGE, 6X16 2
11 957020601600 BOLT, FLANGE, 6X16 2
12 957010602000 BOLT, FLANGE, 6X20 2
13 957020602000 BOLT, FLANGE, 6X20 2
14 80100KWF950 FENDER, RR. 1
15 80103KWF960 PLUG, RR. FENDER 2
16 83606KWF950 BAND, TOOL 1
17 90311KTE910 NUT, RR. FENDER 2
