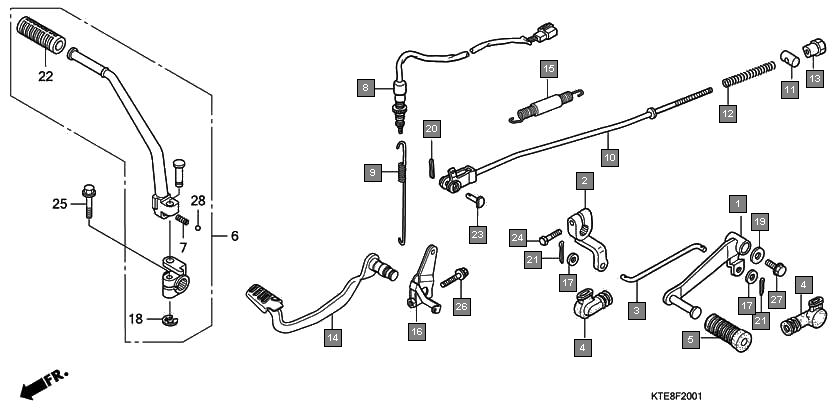

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 24701KWF900 | PEDAL, GEAR CHANGE | 1 |
| 2 | 24711KWF900 | ARM, GEAR CHANGE | 1 |
| 3 | 24720KWF900 | ROD, TIE | 1 |
| 4 | 24721GS3000 | COVER, CHANGE PEDAL | 2 |
| 5 | 24781KR3770 | RUBBER, GEAR CHANGE PEDAL | 1 |
| 6 | 35350KWF961 | SWITCH ASSY., RR. STOP | 1 |
| 7 | 35357KWF900 | SPRING, STOP SWITCH | 1 |
| 8 | 43451KWF900 | ROD COMP., RR. BRAKE | 1 |
| 9 | 43455KSP900 | JOINT, BRAKE ARM | 1 |
| 10 | 43456KSP900 | SPRING, BRAKE ROD | 1 |
| 11 | 43459KSP900 | NUT, BRAKE ROD ADJUSTING | 1 |
| 12 | 46500KWF900 | PEDAL COMP., BRAKE | 1 |
| 13 | 46513KWF900 | SPRING SET, BRAKE PEDAL | 1 |
| 14 | 46515KWF900 | ARM COMP., MIDDLE | 1 |
| 15 | 90502155000 | WASHER, PLAIN, 7MM | 2 |
| 16 | 9410306000 | WASHER, PLAIN, 6MM | 1 |
| 17 | 9420120120 | PIN, SPLIT, 2.0X12 | 1 |
| 18 | 9420120150 | PIN, SPLIT, 2.0X15 | 2 |
| 19 | 9501553000 | PIN C, JOINT | 1 |
| 20 | 957010602000 | BOLT, FLANGE, 6X20 | 1 |
| 21 | 957020602000 | BOLT, FLANGE, 6X20 | 1 |
| 22 | 957010804000 | BOLT, FLANGE, 8X40 | 1 |
| 23 | 957020804000 | BOLT, FLANGE, 8X40 | 1 |
| 24 | 960010601400 | BOLT, FLANGE, 6X14 | 1 |
