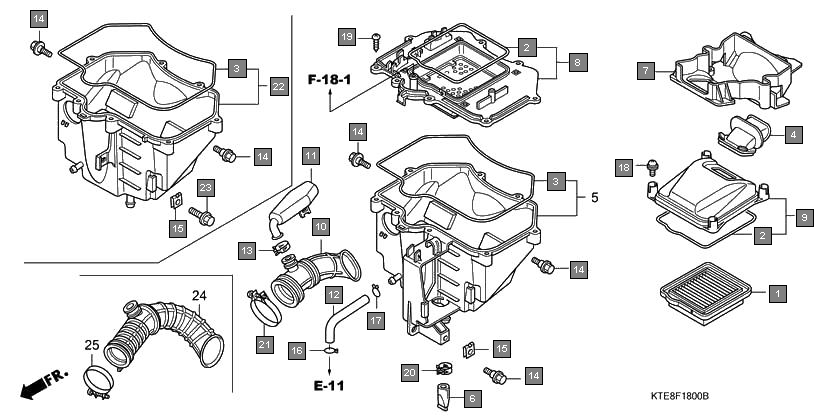

Motorcycles CBF Stunner CBF125MB Frame Air cleaner
Ref.No. Part No. Description Oty
1 17211KWF950 ELEMENT COMP., AIR CLEANER 1
2 17214KTE910 SEAL B, AIR CLEANER 2
3 17215KSP900 SEAL A, AIR CLEANER 1
4 17219KWF950 DUCT, AIR CLEANER 1
5 17227KTE910 TUBE, VINYL, 11X15X40 1
6 17234KWF900 COVER, AIR CLEANER DUCT 1
7 17235KWF950 HOLDER SUB ASSY., AIR CLEANER 1
8 17245KWF950 COVER SUB ASSY., AIR CLEANER 1
9 17311KTE911 RESONATOR 1
10 17371KTE910 TUBE, BREATHER 1
11 19509GE2003 CLAMP, TUBE(D19) 1
12 90111KWF900 BOLT, FLANGE, 6MM 2
13 90320747000 NUT, SPRING, 6MM 1
14 17316611000 CLIP, BREATHER TUBE 1
15 938930501600 SCREW-WASHER, 5X16 4
16 9390325380 SCREW, TAPPING, 5X16 8
17 91406KFN850 CLAMP, TUBE(D14.5) 1
18 17225KWF950 CASE SUB ASSY., AIR CLEANER 1
19 957010601000 BOLT, FLANGE, 6X10 1
20 957020601000 BOLT, FLANGE, 6X10 1
21 17253KWF950 TUBE, AIR CLEANER CONNECTING 1
22 9501842250 BAND, AIR CLEANER CONNECTING TUBE(42) 1
