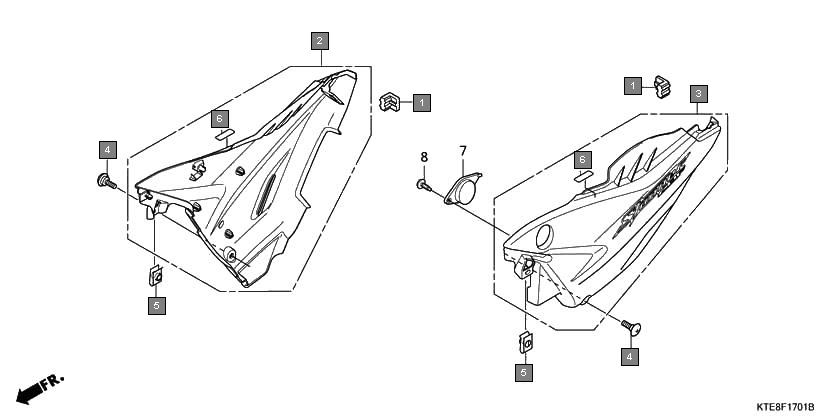

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 83502KCC900 | GROMMET, SIDE COVER | 2 |
2 | 83700KWF960ZA | COVER SET, R. SIDE(WL) *NH303M* MAT AXIS GRAY METALLIC | 1 |
3 | 83800KWF960ZA | COVER SET, L. SIDE(WL) *NH303M* MAT AXIS GRAY METALLIC | 1 |
4 | 90104GT8600 | SCREW, SPECIAL, 6X14 | 2 |
5 | 90320747000 | NUT, SPRING, 6MM | 2 |
6 | 83580KWF900 | FILM, PROTECTION | 2 |
7 | 83650KWF950ZA | CAP, COCK HOLE | 1 |
8 | 9390334320 | SCREW, TAPPING, 4X12 | 1 |
