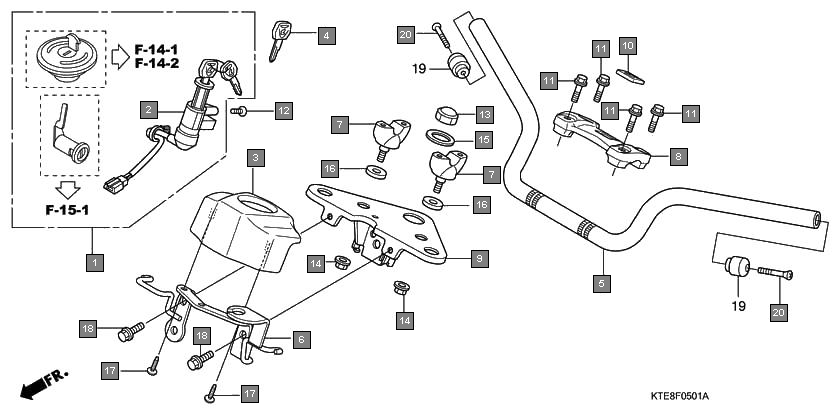

Motorcycles CBF Stunner CBF125MB Frame Handle pipe/top bridge(2)
Ref.No. Part No. Description Oty
1 35010KWF960 KEY SET 1
2 35100KWF901 SWITCH ASSY., COMBINATION & LOCK 1
3 35105KWF900 COVER, COMBINATION SWITCH 1
4 35121KWF960 KEY, BLANK 1
5 53100KWF960ZA PIPE, STEERING HANDLE *NH303M* MAT AXIS GRAY METALLIC 1
6 53127KWF950 GUIDE, CABLE 1
7 53130KTE910 HOLDER, HANDLE UNDER 2
8 53131KWF900ZA HOLDER, HANDLE UPPER *NH303M* MAT AXIS GRAY METALLIC 1
9 53230KWF900 BRIDGE COMP., FORK TOP 1
10 86150KPG901 EMBLEM, PRODUCT(MARUI) 1
11 90117383000 BOLT, FLANGE, 6X28 4
12 90164KPL900 SCREW, U-LOCK FLAT, 6X12 2
13 90304KSP900 NUT, STEERING STEM 1
14 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
15 90503KSP900 WASHER, STEERING STEM 1
16 90521427770 WASHER, 10.3MM 2
17 9390325210 SCREW, TAPPING, 5X12 2
18 957010601408 BOLT, FLANGE, 6X14 2
19 957020601408 BOLT, FLANGE, 6X14 2
20 90107MCT771 SCREW, OVAL, 6X35 2
