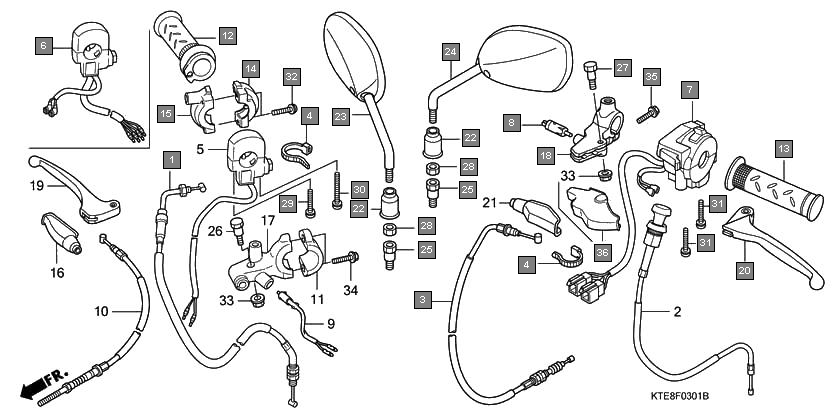

Motorcycles CBF Stunner CBF125MB Frame Handle lever/switch/cable(2)
Ref.No. Part No. Description Oty
1 17910KWF951 CABLE COMP., THROTTLE 1
2 22870KWF900 CABLE COMP., CLUTCH 1
3 32161KSP920 BAND B1, WIRE 2
4 35150KWF931 SWITCH ASSY., STARTER 1
5 35200KWF920 SWITCH ASSY., WINKER 1
6 35330KEJ900 SWITCH COMP., FR. LEVER 1
7 53140KWF950 GRIP COMP., THROTTLE 1
8 53166KSPA70 GRIP, L. HANDLE 1
9 53168KTE910 HOUSING, UNDER THROTTLE 1
10 53167KWF900 HOUSING, UPPER THROTTLE 1
11 53172KTE930 BRACKET, L. HANDLE LEVER 1
12 53178KWF900 LEVER COMP., L. HANDLE 1
13 88114KFN950 CAP, LOCK NUT 2
14 88210KWF841 MIRROR COMP., R. 1
15 88220KWF841 MIRROR COMP., L. 1
16 90103KTE920 BOLT, ADAPTER, 10MM 2
17 90114310000 BOLT, HANDLE LEVER PIVOT 1
18 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
19 93500040320G SCREW, PAN, 4X32 1
20 93500040450G SCREW, PAN, 4X45 1
21 93500050200G SCREW, PAN, 5X20 2
22 93500050220G SCREW, PAN, 5X22 2
23 9405006000 NUT, FLANGE, 6MM 1
24 960010602507 BOLT, FLANGE, 6X25 1
25 53179KWF950 COVER, L. HANDLE LEVER 1
