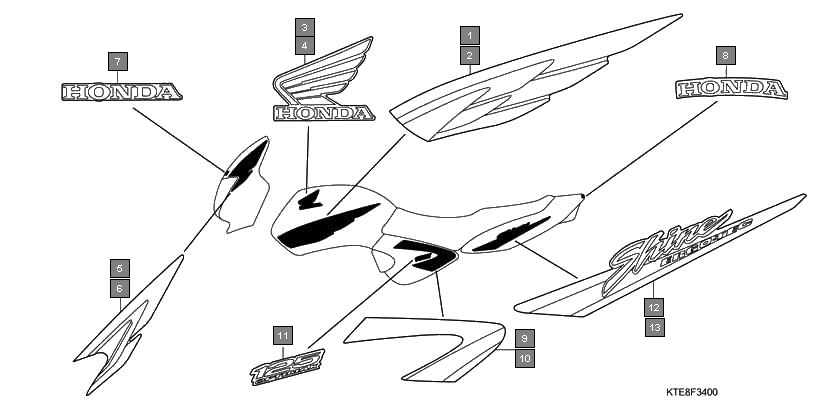

Motorcycles CB Shine CBF125M7 Frame Mark(cbf1256/m7)
Ref.No. Part No. Description Oty
1 17507KTE910ZA STRIPE, R. FUEL TANK *TYPE1* 1
2 17507KTE910ZB STRIPE, R. FUEL TANK *TYPE2* 1
3 17507KTE910ZC STRIPE, R. FUEL TANK *TYPE3* 1
4 17507KTE910ZD STRIPE, R. FUEL TANK *TYPE4* 1
5 17507KTE910ZE STRIPE, R. FUEL TANK *TYPE5* 1
6 17507KTE910ZF STRIPE, R. FUEL TANK *TYPE6* 1
7 17508KTE910ZA STRIPE, L. FUEL TANK *TYPE1* 1
8 17508KTE910ZB STRIPE, L. FUEL TANK *TYPE2* 1
9 17508KTE910ZC STRIPE, L. FUEL TANK *TYPE3* 1
10 17508KTE910ZD STRIPE, L. FUEL TANK *TYPE4* 1
11 17508KTE910ZE STRIPE, L. FUEL TANK *TYPE5* 1
12 17508KTE910ZF STRIPE, L. FUEL TANK *TYPE6* 1
13 17521KTE910ZA MARK, R. FUEL TANK WING *TYPE1* 1
14 17521KTE910ZB MARK, R. FUEL TANK WING *TYPE2* 1
15 17521KTE910ZC MARK, R. FUEL TANK WING *TYPE3* 1
16 17521KTE910ZD MARK, R. FUEL TANK WING *TYPE4* 1
17 17521KTE910ZE MARK, R. FUEL TANK WING *TYPE5* 1
18 17521KTE910ZF MARK, R. FUEL TANK WING *TYPE6* 1
19 17522KTE910ZA MARK, L. FUEL TANK WING *TYPE1* 1
20 17522KTE910ZB MARK, L. FUEL TANK WING *TYPE2* 1
21 17522KTE910ZC MARK, L. FUEL TANK WING *TYPE3* 1
22 17522KTE910ZD MARK, L. FUEL TANK WING *TYPE4* 1
23 17522KTE910ZE MARK, L. FUEL TANK WING *TYPE5* 1
24 17522KTE910ZF MARK, L. FUEL TANK WING *TYPE6* 1
25 61306KTE910ZA STRIPE, R. FR. VISOR *TYPE1* 1
26 61306KTE910ZB STRIPE, R. FR. VISOR *TYPE2* 1
27 61306KTE910ZC STRIPE, R. FR. VISOR *TYPE3* 1
28 61306KTE910ZD STRIPE, R. FR. VISOR *TYPE4* 1
29 61306KTE910ZE STRIPE, R. FR. VISOR *TYPE5* 1
30 61306KTE910ZF STRIPE, R. FR. VISOR *TYPE6* 1
31 61307KTE910ZA STRIPE, L. FR. VISOR *TYPE1* 1
32 61307KTE910ZB STRIPE, L. FR. VISOR *TYPE2* 1
33 61307KTE910ZC STRIPE, L. FR. VISOR *TYPE3* 1
34 61307KTE910ZD STRIPE, L. FR. VISOR *TYPE4* 1
35 61307KTE910ZE STRIPE, L. FR. VISOR *TYPE5* 1
36 61307KTE910ZF STRIPE, L. FR. VISOR *TYPE6* 1
37 61308KTE910ZA MARK, FR. VISOR *TYPE1* 1
38 77228KTE910ZA MARK, RR. CENTER COWL *TYPE1* 1
39 83503KTE910ZA STRIPE, R. SIDE COVER *TYPE1* 1
40 83503KTE910ZB STRIPE, R. SIDE COVER *TYPE2* 1
41 83503KTE910ZC STRIPE, R. SIDE COVER *TYPE3* 1
42 83503KTE910ZD STRIPE, R. SIDE COVER *TYPE4* 1
43 83503KTE910ZE STRIPE, R. SIDE COVER *TYPE5* 1
44 83503KTE910ZF STRIPE, R. SIDE COVER *TYPE6* 1
45 83603KTE910ZA STRIPE, L. SIDE COVER *TYPE1* 1
46 83603KTE910ZB STRIPE, L. SIDE COVER *TYPE2* 1
47 83603KTE910ZC STRIPE, L. SIDE COVER *TYPE3* 1
48 83603KTE910ZD STRIPE, L. SIDE COVER *TYPE4* 1
49 83603KTE910ZE STRIPE, L. SIDE COVER *TYPE5* 1
50 83603KTE910ZF STRIPE, L. SIDE COVER *TYPE6* 1
51 83610KTE910ZA MARK, SIDE COVER *TYPE1* 2
52 83610KTE910ZB MARK, SIDE COVER *TYPE2* 2
53 87116KTE910ZA STRIPE, R. RR. COWL *TYPE1* 1
54 87116KTE910ZB STRIPE, R. RR. COWL *TYPE2* 1
55 87116KTE910ZC STRIPE, R. RR. COWL *TYPE3* 1
56 87116KTE910ZD STRIPE, R. RR. COWL *TYPE4* 1
57 87116KTE910ZE STRIPE, R. RR. COWL *TYPE5* 1
58 87116KTE910ZF STRIPE, R. RR. COWL *TYPE6* 1
59 87117KTE910ZA STRIPE, L. RR. COWL *TYPE1* 1
60 87117KTE910ZB STRIPE, L. RR. COWL *TYPE2* 1
61 87117KTE910ZC STRIPE, L. RR. COWL *TYPE3* 1
62 87117KTE910ZD STRIPE, L. RR. COWL *TYPE4* 1
63 87117KTE910ZE STRIPE, L. RR. COWL *TYPE5* 1
64 87117KTE910ZF STRIPE, L. RR. COWL *TYPE6* 1
