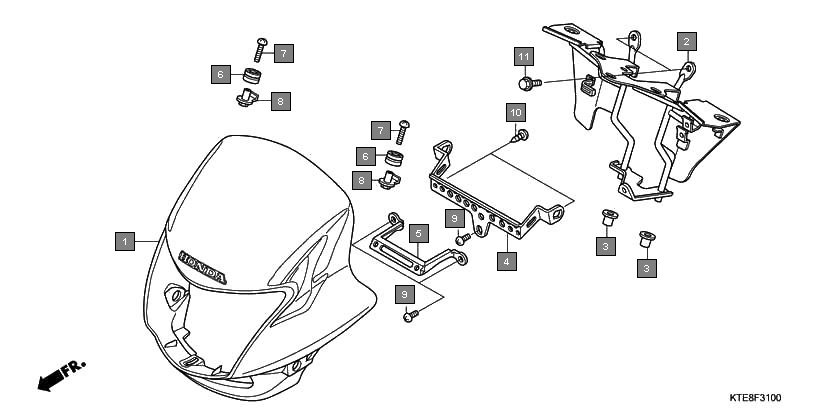

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 61300KTE910ZA | VISOR SET, FR.(WL) *TYPE1* | 1 |
2 | 61300KTE910ZB | VISOR SET, FR.(WL) *TYPE2* | 1 |
3 | 61300KTE910ZC | VISOR SET, FR.(WL) *TYPE3* | 1 |
4 | 61300KTE910ZD | VISOR SET, FR.(WL) *TYPE4* | 1 |
5 | 61300KTE910ZE | VISOR SET, FR.(WL) *TYPE5* | 1 |
6 | 61300KTE910ZF | VISOR SET, FR.(WL) *TYPE6* | 1 |
7 | 61311KTE910 | STAY, FR. COWL | 1 |
8 | 61312149300 | BOOT, HEADLIGHT BRACKET | 2 |
9 | 61315KTE911 | STAY, FR. WINKER | 1 |
10 | 64315KTE910 | STAY, FR. NUMBER PLATE | 1 |
11 | 64615KR1860 | RUBBER, LOWER COWL MOUNTING | 2 |
12 | 90001GW2000 | SCREW, TRUSS, 6X20 | 2 |
13 | 90310KTE910 | NUT, FR. COWL | 2 |
14 | 93500060120A | SCREW, PAN, 6X12 | 3 |
15 | 9390324320 | SCREW, TAPPING, 4X12 | 2 |
16 | 960010601200 | BOLT, FLANGE, 6X12 | 2 |
