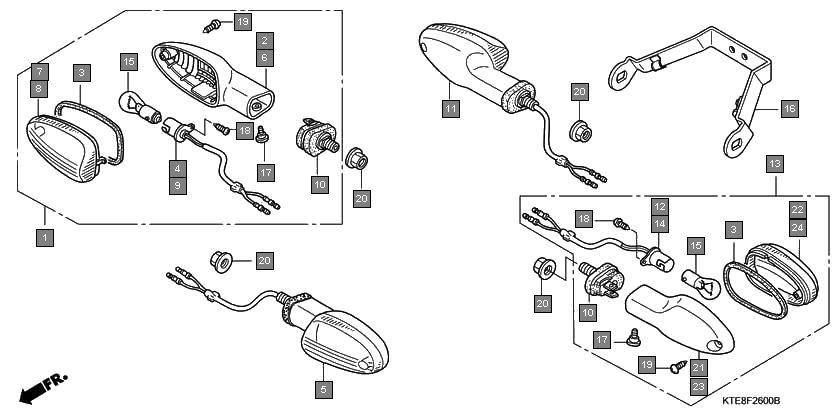

Motorcycles CB Shine CBF125M7 Frame Winker(1)
Ref.No. Part No. Description Oty
1 33400KTE931 WINKER ASSY., R. FR.(12V 21W) 1
2 33401KTE931 BASE, R. WINKER (R. FR./R. RR.) 1
3 33406KTE931 SEAL, GASKET 4
4 33415KTE931 SOCKET COMP., R. WINKER (R. FR.) 1
5 33450KTE931 WINKER ASSY., L. FR.(12V 21W) 1
6 33451KTE931 BASE, L. WINKER (L. FR./L. RR.) 1
7 33452KTE931 LENS, L. WINKER (L. FR./L. RR.) 1
8 33402KTE931 LENS, R. WINKER (R. FR./R. RR.) 1
9 33465KTE931 SOCKET COMP., L. WINKER (L. FR.) 1
10 33941KTE931 STAY COMP., WINKER 4
11 33600KTE931 WINKER ASSY., R. RR.(12V 21W) 1
12 33615KTE931 SOCKET COMP., R. WINKER (R. RR.) 1
13 33650KTE931 WINKER ASSY., L. RR.(12V 21W) 1
14 33665KTE931 SOCKET COMP., L. WINKER (L. RR.) 1
15 34904KTE910 BULB, WINKER(AMBER)(12V 21W) 4
16 34904KTE920 BULB, WINKER(AMBER)(12V 21W)(PY21W) 4
17 50186KTE911 STAY, RR. WINKER 1
18 90380MB2000 SCREW, SPECIAL, 6X8 4
19 33420KTE931 SCREW, TAPPING, 3X7 4
20 9390334380 SCREW, TAPPING, 4X12 4
21 9405010000 NUT, FLANGE, 10MM 4
