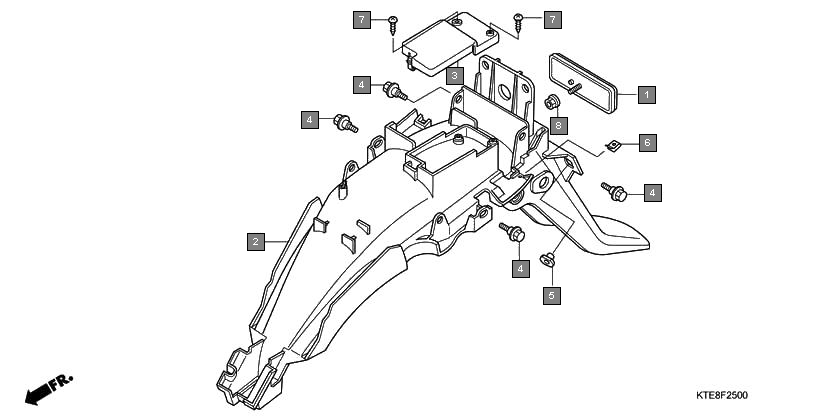

Motorcycles CB Shine CBF125M7 Frame Rear fender(1)
Ref.No. Part No. Description Oty
1 33741KPL901 REFLECTOR, REFLEX 1
2 80101KTE910 FENDER, RR. 1
3 80102KTE910 COVER, TOOL BOX 1
4 90111162000 BOLT, FLANGE, 6MM 4
5 90311KTE910 NUT, RR. FENDER 2
6 90344KTE910 NUT, CLIP, 4MM 2
7 9390324320 SCREW, TAPPING, 4X12 2
8 9405005000 NUT, FLANGE, 5MM 1
