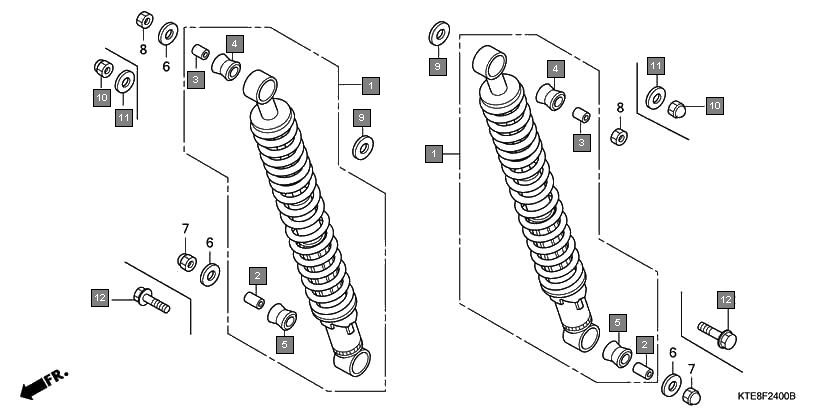

Motorcycles CB Shine CBF125M7 Frame Rear cushion
Ref.No. Part No. Description Oty
1 52400KTE911 CUSHION ASSY., RR. 2
2 52486KAG901 COLLAR, RUBBER BUSH 2
3 52486056000 COLLAR, RR. CUSHION RUBBER BUSH 2
4 52489399601 BUSH, UPPER RUBBER 2
5 52495098000 BUSH, RUBBER 2
6 90551KTE910 WASHER, SPECIAL, 10MM 3
7 94021100200S NUT, CAP, 10MM 2
8 9403010000 NUT, HEX., 10MM 2
9 9410112000 WASHER, PLAIN, 12MM 2
