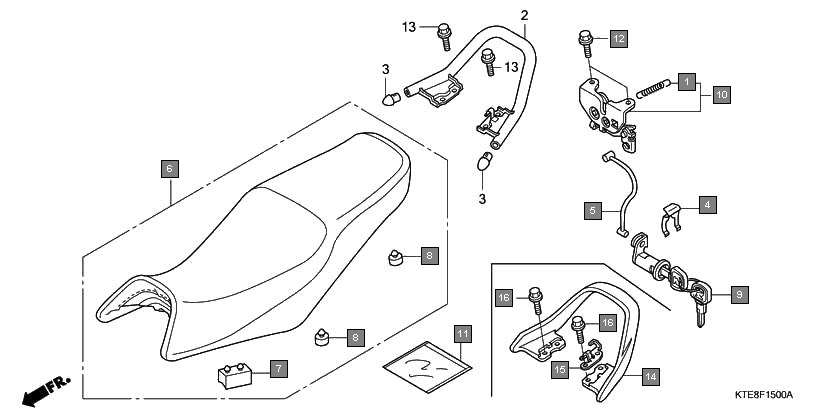

Motorcycles CB Shine CBF125M7 Frame Seat(1)
Ref.No. Part No. Description Oty
1 16574ZG8300 SPRING, LEVER 1
2 50400KTE911 GRIP, RR. 1
3 50415KTE910 CAP, RR. GRIP END 2
4 75581GN8920 SPRING, LOCK KEY SETTING 1
5 77156KTE910 CABLE, SEAT LOCK 1
6 77200KTE911 SEAT ASSY., DOUBLE 1
7 77204KCC900 RUBBER A, SEAT SETTING 2
8 77206KTE910 RUBBER, SEAT SETTING 4
9 77225KTE911 LOCK ASSY., SEAT 1
10 77235KTE910 CATCH COMP., SEAT 1
11 77251KPL900 BAG, SERVICE BOOK 1
12 957010601200 BOLT, FLANGE, 6X12 2
13 957010801600 BOLT, FLANGE, 8X16 4
