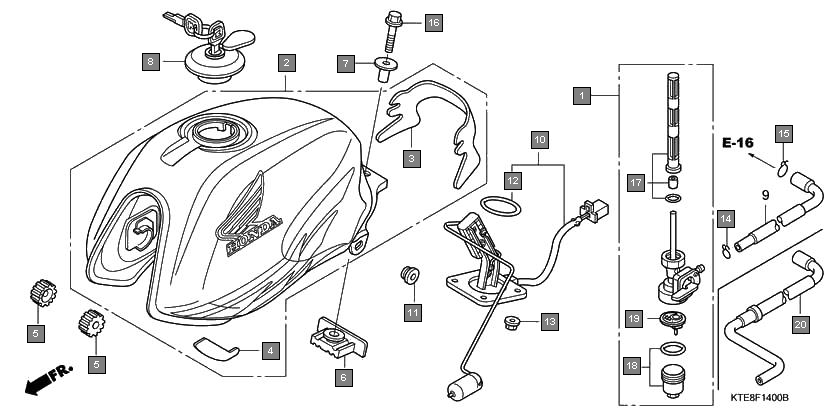

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 16950KCC901 | COCK ASSY., FUEL | 1 |
| 2 | 17500KTE910ZA | TANK ASSY., FUEL(WL) *NHA04M* GENY GRAY METALLIC | 1 |
| 3 | 17500KTE910ZB | TANK ASSY., FUEL(WL) *NH1* BLACK | 1 |
| 4 | 17500KTE910ZC | TANK ASSY., FUEL(WL) *PB370M* CHAMPION BLUE METALLIC | 1 |
| 5 | 17500KTE910ZD | TANK ASSY., FUEL(WL) *PB371M* MOON BLUE METALLIC | 1 |
| 6 | 17500KTE910ZE | TANK ASSY., FUEL(WL) *RP175M* WILD PURPLE METALLIC | 1 |
| 7 | 17500KTE910ZF | TANK ASSY., FUEL(WL) *R316M* ALPHA RED METALLIC | 1 |
| 8 | 17506KTE910 | FILM, TANK PROTECTOR | 1 |
| 9 | 17509KTE910 | FILM, TANK PROTECTOR | 1 |
| 10 | 17611KFN850 | CUSHION, FR. FUEL TANK | 2 |
| 11 | 17613KTE910 | RUBBER, FUEL TANK RR. | 1 |
| 12 | 17614KR3000 | COLLAR, FUEL TANK MOUNTING | 1 |
| 13 | 17620KSP911 | CAP COMP., FUEL FILLER (JAY USHIN) | 1 |
| 14 | 37080KTE930 | FUEL UNIT SET | 1 |
| 15 | 83551376000 | GROMMET, SIDE COVER | 2 |
| 16 | 91305443740 | O-RING, 39.5X5 | 1 |
| 17 | 9405006000 | NUT, FLANGE, 6MM | 4 |
| 18 | 9500202080 | CLIP, TUBE(B8) | 1 |
| 19 | 9500250000 | CLIP, TUBE(C9) | 1 |
| 20 | 957010802800 | BOLT, FLANGE, 8X28 | 1 |
| 21 | 16952KTE910 | SCREEN SET, FUEL STRAINER | 1 |
| 22 | 16953KTE910 | CUP SET, FUEL STRAINER | 1 |
| 23 | 16959KTE910 | FILTER, CUP | 1 |
| 24 | 17681KTE930 | TUBE COMP., FUEL | 1 |
