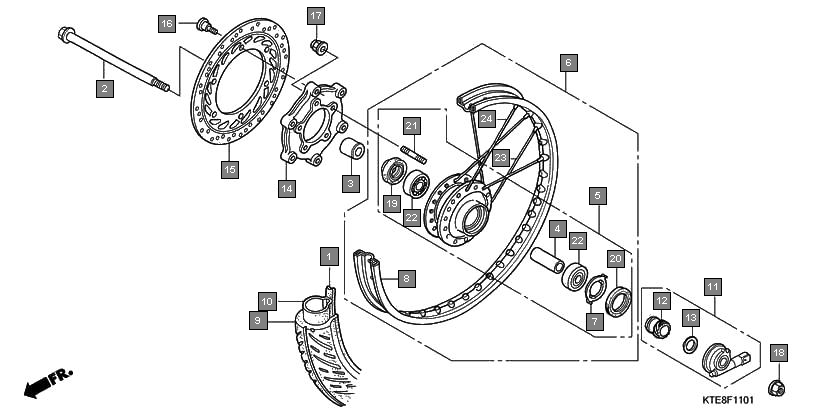

Motorcycles CB Shine CBF125M7 Frame Front wheel(2)
Ref.No. Part No. Description Oty
1 42713KSP901 FLAP, TIRE(1.60/1.85-18) 1
2 44301KPL900 AXLE, FR. WHEEL 1
3 44311KSP900 COLLAR, FR. WHEEL SIDE 1
4 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
5 44635KTE920ZA HUB SUB ASSY., FR. *NH35M* CLOUD SILVER METALLIC 1
6 44650KTE920ZA WHEEL SUB ASSY., FR. *NH35M* CLOUD SILVER METALLIC 1
7 44680410000 RETAINER, GEAR BOX 1
8 44701KSP930 RIM, FR. WHEEL 1
9 44711KFN852 TIRE, FR.(2.75-18 42P) 1
10 44712KFN852 TUBE(2.75-18) 1
11 44800KTE920 BOX ASSY., SPEEDOMETER GEAR 1
12 44804KSP901 GEAR, SPEEDOMETER 1
13 44809KPL900 WASHER, SPEEDOMETER GEAR 1
14 45122KSP930ZA HUB, FR. BRAKE 1
15 45251KSP931 DISK, FR. BRAKE 1
16 90105MK5010 BOLT, DISK, 8X22 6
17 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 5
18 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
19 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
20 91258410013 DUST SEAL, 40X50X5(ARAI) 1
21 92911060180E BOLT, STUD, 6X18 5
22 961406301010 BEARING, RADIAL BALL, 6301U 2
23 9738841231P0 SPOKE SET A, 10X195.5 (INSIDE) 18
24 9749041230P0 SPOKE SET A, 10X195 (OUTSIDE) 18
