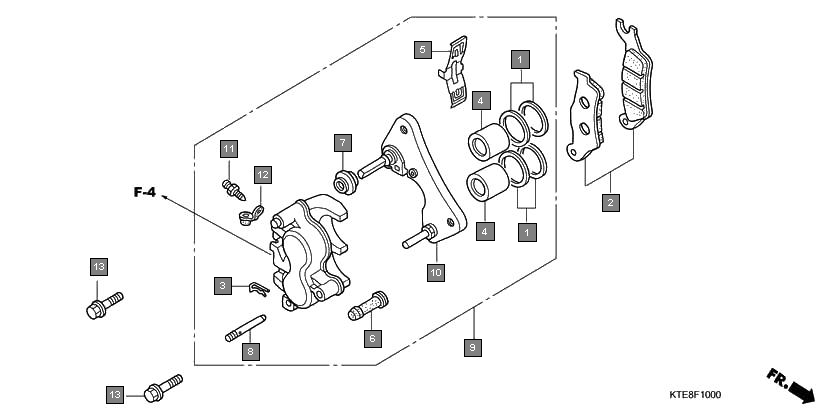

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 06451KCC841 | SEAL SET, PISTON | 2 |
2 | 06455KCC841 | PAD SET, FR. | 1 |
3 | 43216MAK003 | CLIP, HANGER PIN | 1 |
4 | 45107KCC841 | PISTON(26) | 2 |
5 | 45108KCC841 | SPRING, PAD | 1 |
6 | 45132KCC841 | BOOT, PIN BUSH | 1 |
7 | 45133KCC841 | BOOT, B | 1 |
8 | 45220KCC841 | PIN COMP., HANGER | 1 |
9 | 45250KCC841 | CALIPER SUB ASSY., R. FR. | 1 |
10 | 45290KCC841 | BRACKET SUB ASSY., FR. CALIPER | 1 |
11 | 45352KCC841 | SCREW, BLEEDER | 1 |
12 | 45353KCC841 | CAP, BLEEDER | 1 |
13 | 90155KSP900 | BOLT, FLANGE, 8X25 | 2 |
