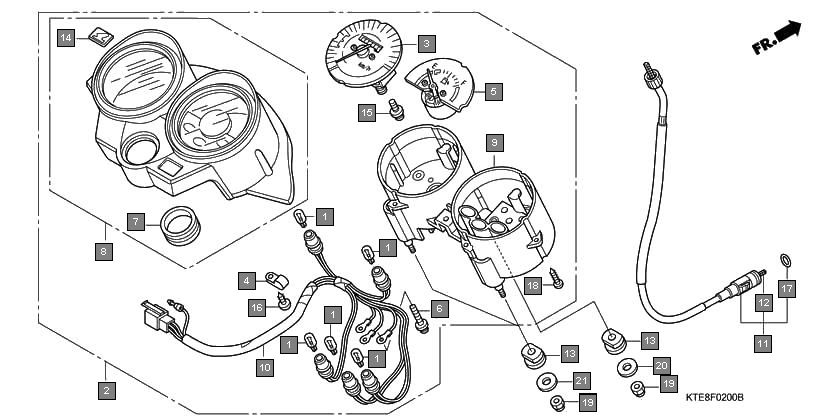

Motorcycles CB Shine CBF125M7 Frame Meter(1)
Ref.No. Part No. Description Oty
1 34908KTF641 BULB, WEDGE BASE(T10 12V 1.7W) 5
2 37100KTE911 METER ASSY., COMBINATION 1
3 37210KTE911 SPEEDOMETER COMP. 1
4 37215KS3901 CLAMP 1
5 37300KTE911 METER COMP., FUEL 1
6 37305KE5008 SCREW-WASHER, 3X22 3
7 37312KTE910 GROMMET, COMBINATION SWITCH 1
8 37610KTE911 CASE ASSY., UPPER 1
9 37612KTE911 CASE ASSY., UNDER 1
10 37619KTE911 SOCKET COMP. 1
11 44830KTE910 CABLE COMP., SPEEDOMETER 1
12 44831KTE910 CABLE, INNER 1
13 80101443000 RUBBER, RR. FENDER CUSHION 3
14 86150KPG901 EMBLEM, PRODUCT(MARUI) 1
15 90035166008 SCREW-WASHER, SPECIAL, 4X10 2
16 90109MZ5008 SCREW, TAPPING, 4X14 1
17 91352671003 O-RING, 8.5X1.5(ARAI) 1
18 91352671004 O-RING, 8.5X1.5(NOK) 1
19 9390322420 SCREW, TAPPING, 3X16 8
20 94001060700S NUT, HEX., 6MM 3
21 9410306700 WASHER, PLAIN, 6MM 1
22 9410306700 WASHER, PLAIN, 6MM 2
