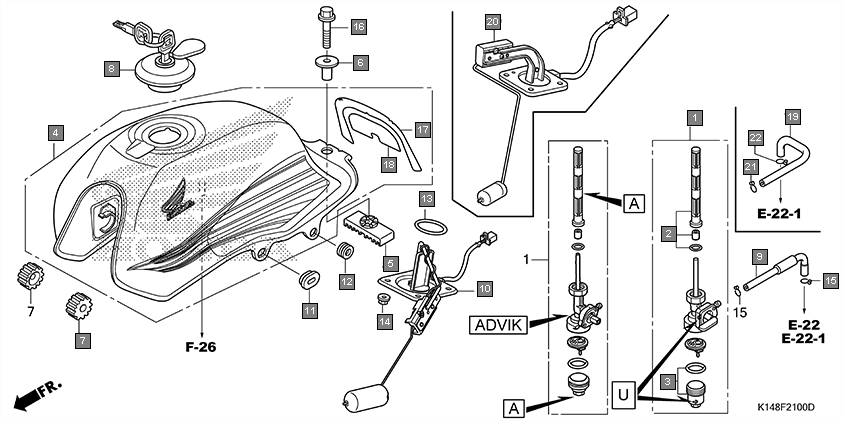

Motorcycles Dream Yuga CB110MD Frame Fuel tank
Ref.No. Part No. Description Oty
1 16950KZAW01 COCK ASSY., FUEL(UCAL) 1
2 16954KZAW00 SCREEN SET, FUEL STRAINER (UCAL) 1
3 16955KZAW00 CUP SET, FUEL STRAINER(UCAL) 1
4 17520K14930ZB TANK ASSY., FUEL(WL)*TYPE5* 1
5 17520K14930ZC TANK ASSY., FUEL(WL)*TYPE4* 1
6 17520K14930ZD TANK ASSY., FUEL(WL)*TYPE3* 1
7 17520K14930ZE TANK ASSY., FUEL(WL)*TYPE2* 1
8 17520K14930ZF TANK ASSY., FUEL(WL)*TYPE1* 1
9 17508KVX600 RUBBER, RR. FUEL TANK MOUNTING 1
10 17509KVX600 COLLAR, FUEL TANK MOUNT 1
11 17611KFN850 CUSHION, FR. FUEL TANK 2
12 17620KSP911 CAP COMP., FUEL FILLER (JAY USHIN) 1
13 17681K14900 TUBE, FUEL 1
14 37800K14901 FUEL UNIT 1
15 83551300000 GROMMET, AIR CLEANER CASE 2
16 83551376000 GROMMET, SIDE COVER 2
17 91305443740 O-RING, 39.5X5 1
18 9405006000 NUT, FLANGE, 6MM 4
19 9500202080 CLIP, TUBE(B8) 2
20 957010803508 BOLT, FLANGE, 8X35 1
21 957020803508 BOLT, FLANGE, 8X35 1
22 17506K14930 FILM A, TANK PROTECTOR 1
23 17507K14930 FILM B, TANK PROTECTOR 1
