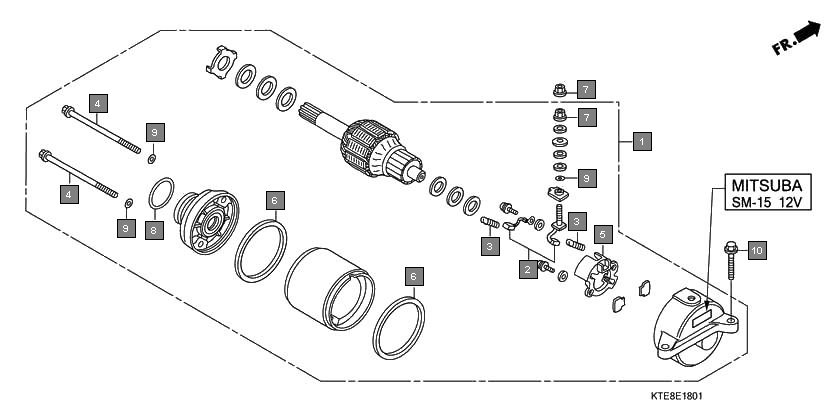

Motorcycles CB Shine CBF125C9 Engine Starting motor(mitsuba sm-15)
Ref.No. Part No. Description Oty
1 31200KTE931 MOTOR ASSY., STARTING (MITSUBA SM14) 1
2 31200KWF941 (MITSUBA SM-15) 1
3 31200KSP901 MOTOR ASSY., STARTING (MITSUBA SM-15) 1
4 31201KPTA01 TERMINAL SET, BRUSH 1
5 31204KG8004 SPRING, CARBON BRUSH 2
6 31205KTC921 BOLT, SETTING 2
7 31205KPH881 BOLT, SETTING 2
8 31206KPH881 HOLDER, BRUSH 1
9 31207MBE008 RING 2
10 90071MB0000 NUT-WASHER, 6MM 2
11 91309425003 O-RING, 24.4X3.1(ARAI) 1
12 91320MB0000 O-RING, 4X2 3
13 90016KWF940 BOLT, FLANGE, 6X22 2
14 957010602200 BOLT, FLANGE, 6X22 2
15 957020602200 BOLT, FLANGE, 6X22 2
