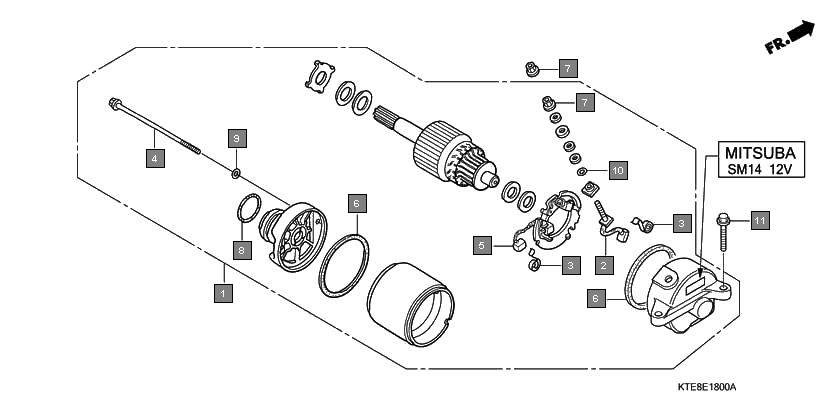

Motorcycles CB Shine CBF125C9 Engine Starting motor(mitsuba sm14)
Ref.No. Part No. Description Oty
1 31200KTE931 MOTOR ASSY., STARTING (MITSUBA SM14) 1
2 31201MBE008 TERMINAL SET, BRUSH 1
3 31204KS5901 SPRING, CARBON BRUSH 2
4 31205KFK003 BOLT, SETTING 2
5 31206MBE008 HOLDER SET, BRUSH 1
6 31207MBE008 RING 2
7 90071MB0000 NUT-WASHER, 6MM 2
8 91309425003 O-RING, 24.4X3.1(ARAI) 1
9 91320MBE008 O-RING 2
10 91320MB0000 O-RING, 4X2 1
11 957010602200 BOLT, FLANGE, 6X22 2
