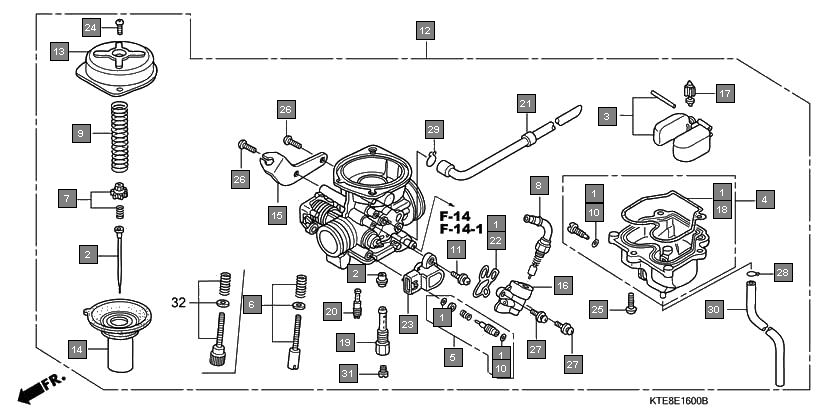

Motorcycles CB Shine CBF125C9 Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KSP911 GASKET SET 1
2 16012KTE911 NEEDLE SET, JET 1
3 16012KWF901 NEEDLE SET, JET 1
4 16012KWF842 NEEDLE SET, JET 1
5 16013KRC921 FLOAT SET 1
6 16015KSP911 CHAMBER SET, FLOAT 1
7 16016KTE911 SCREW SET A 1
8 16016KWF901 SCREW SET A 1
9 16016KWF841 SCREW SET A 1
10 16028KTE911 SCREW SET B 1
11 16037KPP861 PLATE SET, VALVE 1
12 16046KVC901 VALVE SET, STARTER 1
13 16050KTE911 SPRING, COMPRESSION COIL 1
14 16050KWF901 SPRING, COMPRESSION COIL 1
15 16050KWF841 SPRING, COMPRESSION COIL 1
16 16075KRP981 O-RING 2
17 16080KTN901 SCREW-WASHER, TORX(5X16) 1
18 16100KTE911 CARBURETOR ASSY.(AVK3BB A) 1
19 16100KWF901 CARBURETOR ASSY.(AVK4BG A) 1
20 16100KTE912 CARBURETOR ASSY.(AVK3BB B) 1
21 16100KWF842 CARBURETOR ASSY.(AVK4BH A) 1
22 16100KTEA01 CARBURETOR ASSY.(AVK3BU A) 1
23 16107KGF911 TOP 1
24 16111KTE911 PISTON COMP., VACUUM 1
25 16111KWF901 PISTON COMP., VACUUM 1
26 16119KTE911 STAY, WIRE 1
27 16140KTE911 BODY COMP., BYSTARTER 1
28 16155KFR701 VALVE COMP., FLOAT 1
29 16163KRP981 GASKET, FLOAT CHAMBER 1
30 16165KSP911 HOLDER, NEEDLE JET 1
31 16165KWF901 HOLDER, NEEDLE JET 1
32 16180KGF911 JET, SLOW, #38 1
33 16180KGH971 JET, SLOW, #35 1
34 16198KTE911 TUBE COMP., AIR VENT 1
35 16423KGH901 GASKET, BYSTARTER 1
36 37890KTN901 SENSOR ASSY., THROTTLE 1
37 93500040081H SCREW, PAN, 4X8 2
38 93500040121H SCREW, PAN, 4X12 3
39 93500040120H SCREW, PAN, 4X12 3
40 93500050121H SCREW, PAN, 5X12 2
41 938920501218 SCREW-WASHER, 5X12 2
42 9500202089 CLIP, TUBE(B8) 1
43 9500202109 CLIP, TUBE(B10) 1
44 950054544050 TUBE, 4.5X440(95005-45001-50M) 1
45 950054545050 TUBE, 4.5X450(95005-45001-50M) 1
46 99101KPB1020 JET, MAIN, #102 1
47 99101KTB0980 JET, MAIN, #98 1
48 99101MAZ1080 JET, MAIN, #108 1
49 16028KPP901 SCREW SET B 1
