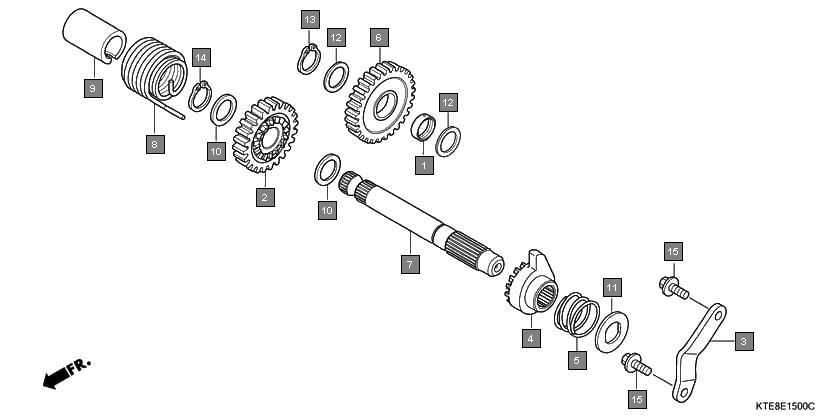

Motorcycles CB Shine CBF125C9 Engine Kick starter spindle
Ref.No. Part No. Description Oty
1 23427KSP910 BUSH, 17X20.5X8.0 1
2 23427KRM840 BUSH, 17X20.5X8.0 1
3 28211KRM840 PINION, KICK STARTER(24T) 1
4 28211KWF900 PINION, KICK STARTER(24T) 1
5 28215KRM840 PLATE, KICK STOPPER 1
6 28221KRM840 RATCHET, STARTER 1
7 28223KRM840 SPRING, RATCHET 1
8 28231KRM840 GEAR, KICK STARTER IDLE(29T) 1
9 28231KWF900 GEAR, KICK STARTER IDLE(29T) 1
10 28251KSP911 SPINDLE, KICK STARTER 1
11 28261KRM840 SPRING, KICK RETURN 1
12 28282KRM840 COLLAR, KICK SPRING 1
13 90451KRM840 WASHER, THRUST, 16MM 2
14 90455KSP910 WASHER, SPLINE, 14MM 1
15 90458KRM840 WASHER, THRUST, 17MM 2
16 90458KWF900 WASHER, THRUST, 17MM 2
17 90452GB4770 WASHER, THRUST, 17MM 2
18 90602KRM840 CIRCLIP, EXTERNAL, 17MM 1
19 9451016000 CIRCLIP, EXTERNAL, 16MM 1
20 957010601600 BOLT, FLANGE, 6X16 2
21 957020601600 BOLT, FLANGE, 6X16 2
