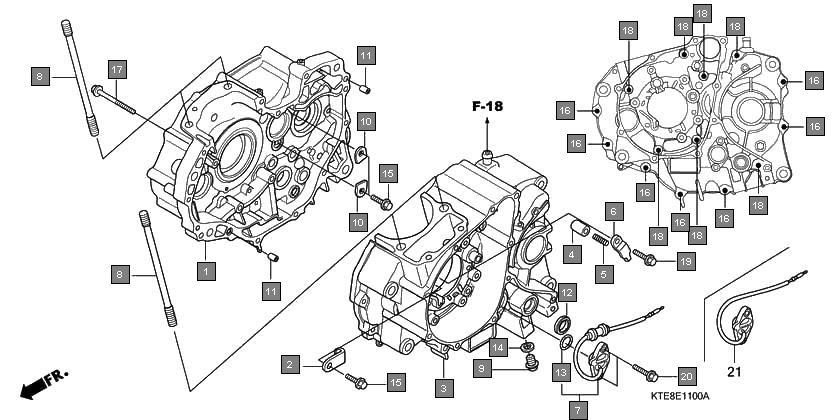

Motorcycles CB Shine CBF125C9 Engine Crankcase
Ref.No. Part No. Description Oty
1 11100KTE910 CRANKCASE COMP., R. 1
2 11100KTE930 CRANKCASE COMP., R. 1
3 11100KWF900 CRANKCASE COMP., R. 1
4 11100KWF920 CRANKCASE COMP., R. 1
5 11100KWF960 CRANKCASE COMP., R. 1
6 11100KSP910 CRANKCASE COMP., R. 1
7 11100KSP900 CRANKCASE COMP., R. 1
8 11100KSP860 CRANKCASE COMP., R. 1
9 11100KTEA00 CRANKCASE COMP., R. 1
10 11100KTEA20 CRANKCASE COMP., R. 1
11 11108KTT900 PLATE, L. BEARING SETTING 3
12 11200KTE910 CRANKCASE COMP., L. 1
13 11200KTE930 CRANKCASE COMP., L. 1
14 11200KWF900 CRANKCASE COMP., L. 1
15 11200KWF920 CRANKCASE COMP., L. 1
16 11200KWF960 CRANKCASE COMP., L. 1
17 11200KSP911 CRANKCASE COMP., L. 1
18 11200KSP901 CRANKCASE COMP., L. 1
19 11200KSP860 CRANKCASE COMP., L. 1
20 11200KTEA00 CRANKCASE COMP., L. 1
21 11200KTEA20 CRANKCASE COMP., L. 1
22 11215KRM840 PLUG, BEARING PUSH 1
23 11216KRM840 SPRING, BEARING PUSH 1
24 11217KRM840 PLATE, BEARING PUSH 1
25 35750KTE910 SWITCH SET, NEUTRAL 1
26 90031KSP910 BOLT, CYLINDER STUD, 8X140 4
27 90131KRM840 BOLT, DRAIN PLUG, 12MM 1
28 90441KRM840 PLATE, BEARING HOLDER 2
29 91105KSP910 DOWEL PIN, 8X14 2
30 90702KRM840 DOWEL PIN, 8X14 2
31 91203KSP911 OIL SEAL, 14X22X5(ARAI) 1
32 91305KPH900 O-RING, 19.4X2.3 1
33 9410912000 WASHER, DRAIN PLUG, 12MM 1
34 957010601600 BOLT, FLANGE, 6X16 5
35 957020601600 BOLT, FLANGE, 6X16 5
36 957010604000 BOLT, FLANGE, 6X40 7
37 90001KWF940 BOLT, FLANGE, 6X40 7
38 957020604000 BOLT, FLANGE, 6X40 7
39 957010604500 BOLT, FLANGE, 6X45 1
40 90021KWF940 BOLT, FLANGE, 6X45 1
41 957020604500 BOLT, FLANGE, 6X45 1
42 957010607000 BOLT, FLANGE, 6X70 7
43 90002KWF940 BOLT, FLANGE, 6X70 7
44 957020607000 BOLT, FLANGE, 6X70 7
45 960010601800 BOLT, FLANGE, 6X18 1
46 960010602000 BOLT, FLANGE, 6X20 2
47 35759KWF940 CONTACT ASSY., NEUTRAL SWITCH 2
