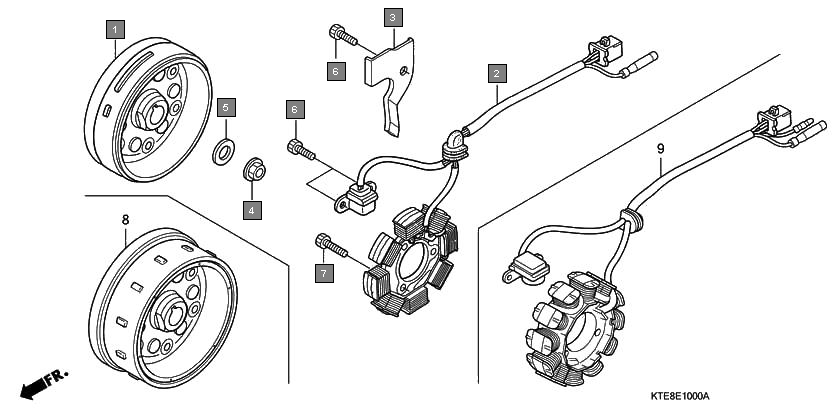

Motorcycles CB Shine CBF125C9 Engine Generator
Ref.No. Part No. Description Oty
1 31110KTE911 FLYWHEEL COMP. 1
2 31110KTE931 FLYWHEEL COMP. 1
3 31120KTE911 STATOR COMP. 1
4 32111KSP910 CLAMPER, A.C. GENERATOR CORD 1
5 90201KRM840 NUT, FLANGE, 14MM 1
6 90501KPTA00 WASHER, 14.1X29X2.8 1
7 966000601600 BOLT, SOCKET, 6X16 3
8 966000602500 BOLT, SOCKET, 6X25 3
9 31110KWF941 FLYWHEEL COMP. 1
10 31120KWF941 STATOR COMP. 1
