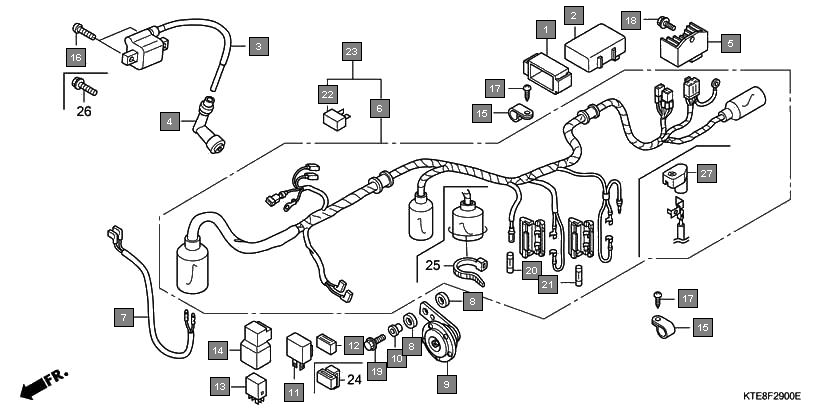

Motorcycles CB Shine CBF125A Frame Wire harness(carburetor)
Ref.No. Part No. Description Oty
1 30401KTE910 CUSHION, C.D.I. UNIT 1
2 30410KTEA01 C.D.I. UNIT COMP., DIGITAL 1
3 30500KTEA01 COIL ASSY., IGNITION 1
4 30700KSP910 CAP ASSY., NOISE SUPPRESSOR 1
5 31600KWF841 RECTIFIER COMP., REGULATOR 1
6 32100KTEA00 HARNESS, WIRE 1
7 32102KCC840 SUB CORD 1
8 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
9 38110KTE910 HORN COMP.(HIGH) 1
10 38117KFE701 COLLAR, HORN SETTING 1
11 38301KPL901 RELAY COMP., WINKER 1
12 38306KTE910 SUSPENSION, WINKER RELAY 1
13 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
14 38506KSP910 SUSPENSION, POWER RELAY 1
15 90628750000 CLIP(14MM) 2
16 93500060200H SCREW, PAN, 6X20 2
17 9390324320 SCREW, TAPPING, 4X12 2
18 957010601200 BOLT, FLANGE, 6X12 1
19 957020601200 BOLT, FLANGE, 6X12 1
20 957010602008 BOLT, FLANGE, 6X20 1
21 957020602008 BOLT, FLANGE, 6X20 1
22 9820011000 FUSE A(10A) 2
23 9820011500 FUSE(15A) 2
24 31700124008 RECTIFIER ASSY., SILICON(SHINDENGEN) 1
25 32100KTEA20 HARNESS, WIRE 1
26 32417KRE900 COVER, BATTERY TERMINAL 1
