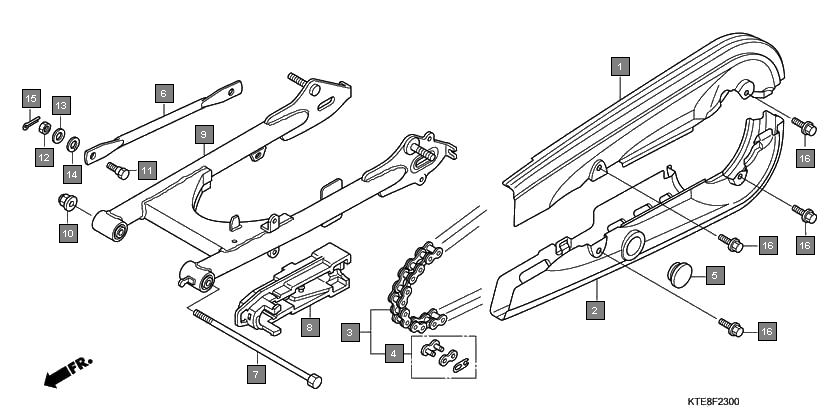

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 40510KTEA00ZA | CASE, UPPER HALF DRIVE CHAIN *NH105* MAT BLACK(#15-#20) | 1 |
| 2 | 40520KTE910ZB | CASE, UNDER HALF DRIVE CHAIN *NH105* MAT BLACK(#15-#20) | 1 |
| 3 | 40530KTE912 | CHAIN, DRIVE(420-116)(DID) | 1 |
| 4 | 40530KTE920 | CHAIN, DRIVE(DID420DX116RB) | 1 |
| 5 | 40531KPH901 | JOINT, DRIVE CHAIN(DAIDO) | 1 |
| 6 | 40531KTE912 | JOINT, DRIVE CHAIN(LGB) | 1 |
| 7 | 40545001000 | CAP, CHAIN CASE PEEP HOLE | 1 |
| 8 | 43431KTE910 | ARM, RR. BRAKE STOPPER | 1 |
| 9 | 52101KTC900 | BOLT, SWINGARM PIVOT | 1 |
| 10 | 52170KTE910 | SLIDER, CHAIN | 1 |
| 11 | 52200KTEA00 | SWINGARM SUB ASSY., RR. | 1 |
| 12 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
| 13 | 9281210000 | BOLT A, STOPPER ARM | 1 |
| 14 | 94001080000S | NUT, HEX., 8MM | 1 |
| 15 | 9410108000 | WASHER, PLAIN, 8MM | 1 |
| 16 | 9411110000 | WASHER, SPRING, 10MM | 1 |
| 17 | 9420120150 | PIN, SPLIT, 2.0X15 | 1 |
| 18 | 957010601000 | BOLT, FLANGE, 6X10 | 4 |
| 19 | 957020601000 | BOLT, FLANGE, 6X10 | 4 |
