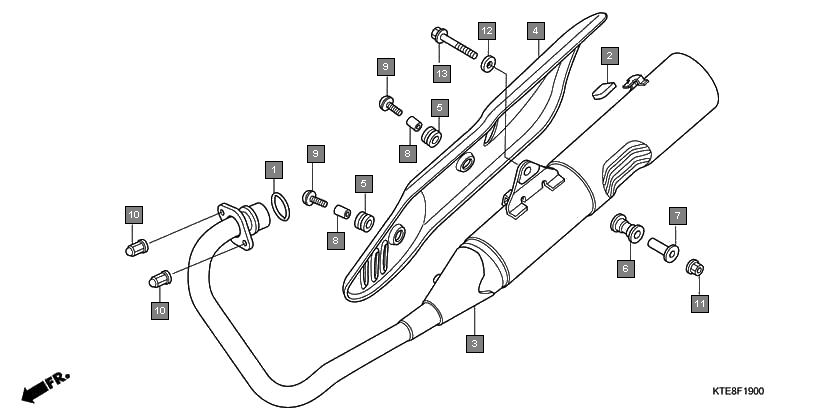

Motorcycles CB Shine CBF125A Frame Exhaust muffler(1)
Ref.No. Part No. Description Oty
1 18291KSP901 GASKET, EX. PIPE 1
2 18293KPK900 RUBBER, PROTECTOR PACKING 1
3 18300KTE850 MUFFLER COMP., EX. 1
4 18311KTEA00 COVER, MUFFLER 1
5 18345MBT610 RUBBER, PROTECTOR MOUNTING 2
6 18421438670 RUBBER, MUFFLER MOUNTING 1
7 18442KRC900 COLLAR, MUFFLER MOUNTING 1
8 33619459840 COLLAR, WINKER STAY 2
9 90107KTE910 BOLT, BODY COVER SETTING 2
10 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
11 9405010000 NUT, FLANGE, 10MM 1
12 9410310000 WASHER, PLAIN, 10MM 1
13 958011005500 BOLT, FLANGE, 10X55 1
14 958021005500 BOLT, FLANGE, 10X55 1
