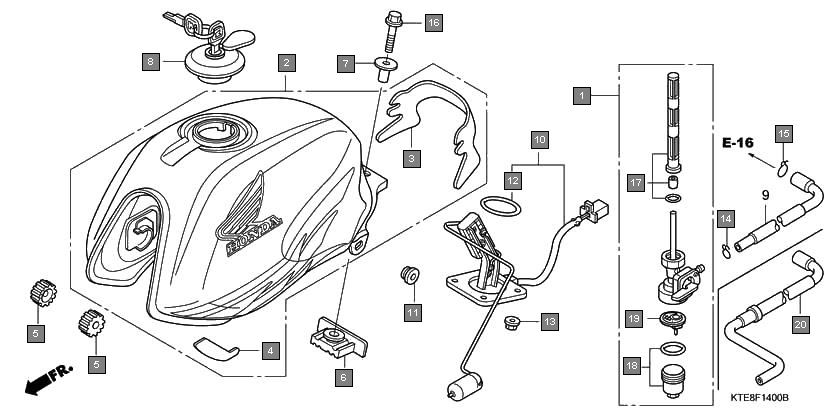

Motorcycles CB Shine CBF125A Frame Fuel tank(1)
Ref.No. Part No. Description Oty
1 16950KCC901 COCK ASSY., FUEL 1
2 17500KTEA00ZA TANK ASSY., FUEL(WL) *TYPE1* 1
3 17500KTEA00ZB TANK ASSY., FUEL(WL) *TYPE2* 1
4 17500KTEA00ZC TANK ASSY., FUEL(WL) *TYPE3* 1
5 17500KTEA00ZD TANK ASSY., FUEL(WL) *TYPE4* 1
6 17500KTEA00ZE TANK ASSY., FUEL(WL) *TYPE5* 1
7 17506KTE910 FILM, TANK PROTECTOR 1
8 17509KTE910 FILM, TANK PROTECTOR 1
9 17611KFN850 CUSHION, FR. FUEL TANK 2
10 17613KTE910 RUBBER, FUEL TANK RR. 1
11 17614KR3000 COLLAR, FUEL TANK MOUNTING 1
12 17620KSP911 CAP COMP., FUEL FILLER (JAY USHIN) 1
13 37080KTE930 FUEL UNIT SET 1
14 83551376000 GROMMET, SIDE COVER 2
15 91305443740 O-RING, 39.5X5 1
16 9405006000 NUT, FLANGE, 6MM 4
17 9500202080 CLIP, TUBE(B8) 1
18 9500250000 CLIP, TUBE(C9) 1
19 957010802800 BOLT, FLANGE, 8X28 1
20 957020802800 BOLT, FLANGE, 8X28 1
21 16952KTE910 SCREEN SET, FUEL STRAINER 1
22 16953KTE910 CUP SET, FUEL STRAINER 1
23 16959KTE910 FILTER, CUP 1
24 17681KTE930 TUBE COMP., FUEL 1
