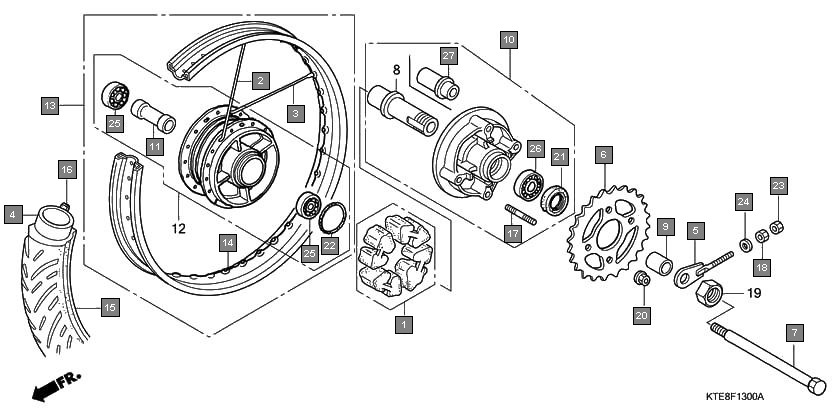

Motorcycles CB Shine CBF125A Frame Rear wheel(1)
Ref.No. Part No. Description Oty
1 06410KTE910 DAMPER SET, WHEEL 1
2 06420KSP900 SPOKE SET A, RR.(OUTSIDE) 18
3 06421KSP900 SPOKE SET B, RR.(INSIDE) 18
4 06427KTE910 TUBE SET, TUFF UP 1
5 40543KTE910 ADJUSTER COMP., R. CHAIN 1
6 41201KTE910 SPROCKET, FINAL DRIVEN(41T) 1
7 42301KTEA00 AXLE, RR. WHEEL 1
8 42304KTEA00 COLLAR, RR. AXLE SLEEVE 1
9 42615KTEA00 FLANGE SUB ASSY., FINAL DRIVEN 1
10 42620KTE910 COLLAR, RR. AXLE DISTANCE 1
11 42635KTE910ZB HUB SUB ASSY., RR. *NH1* BLACK 1
12 42650KTE910ZB WHEEL SUB ASSY., RR. *NH1* BLACK 1
13 42701KTE910 RIM, RR. WHEEL(FOR FR.) 1
14 42711KTC901 TIRE, RR.(MRF) (2.75-18 6PR 48P) 1
15 42713KSP901 FLAP, TIRE(1.60/1.85-18) 1
16 90128KTE910 BOLT, STUD, 8X20 4
17 90302KBP900 NUT, SPECIAL, 6MM 1
18 90309KTE911 NUT, FLANGE SPECIAL, 8MM 4
19 91251KGH901 DUST SEAL, 27X40X4.5(ARAI) 1
20 91304704000 O-RING, 42MM 1
21 94001060000S NUT, HEX., 6MM 1
22 9410106000 WASHER, PLAIN, 6MM 1
23 961406301010 BEARING, RADIAL BALL, 6301U 2
24 961506203010 BEARING, RADIAL BALL, 6203UU 1
25 42303KWF950 SLEEVE, RR. WHEEL 1
