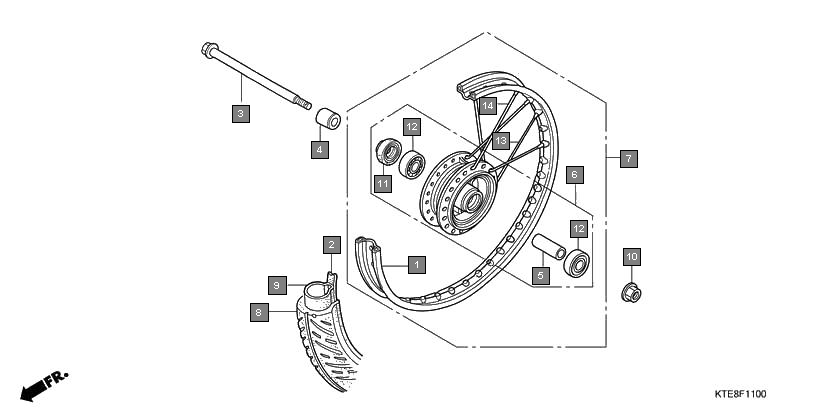

Motorcycles CB Shine CBF125A Frame Front wheel(1)
Ref.No. Part No. Description Oty
1 42701KTE910 RIM, RR. WHEEL(FOR FR.) 1
2 42713KSP901 FLAP, TIRE(1.60/1.85-18) 1
3 44301KPL900 AXLE, FR. WHEEL 1
4 44311KSP900 COLLAR, FR. WHEEL SIDE 1
5 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
6 44635KTE910ZB HUB SUB ASSY., FR. *NH1* BLACK 1
7 44650KTE910ZB WHEEL SUB ASSY., FR. *NH1* BLACK 1
8 44711KFN852 TIRE, FR.(2.75-18 42P) 1
9 44712KFN852 TUBE(2.75-18) 1
10 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
11 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
12 961406301010 BEARING, RADIAL BALL, 6301U 2
13 9733441166P0 SPOKE SET A, 10X163(INSIDE) 18
14 9760041165P0 SPOKE SET A, 10X162.5(OUTSIDE) 18
