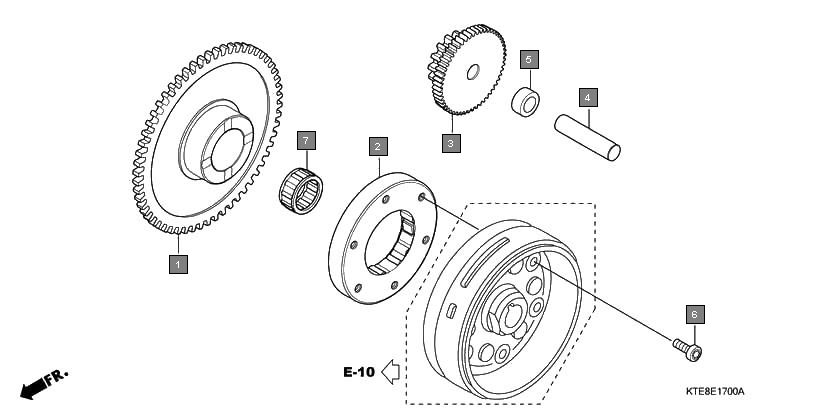

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 28110KRM850 | GEAR, STARTER DRIVEN(58T) | 1 |
2 | 28120KWB921 | CLUTCH ASSY., ONE WAY (KYUSHU MUSASHI SEIMITSU) | 1 |
3 | 28120KPH701 | CLUTCH ASSY., ONE WAY(EXEDY) | 1 |
4 | 28131KRM850 | GEAR, STARTER REDUCTION (15/53T) | 1 |
5 | 28131KTN900 | GEAR, STARTER REDUCTION (15/53T) | 1 |
6 | 28132KN6930 | SHAFT, REDUCTION GEAR | 1 |
7 | 28133KRM850 | COLLAR, STARTER REDUCTION | 1 |
8 | 90085KSP901 | BOLT, SOCKET, 6MM | 6 |
9 | 91022KSP900 | BEARING, NEEDLE, 22X29X16.8 | 1 |
