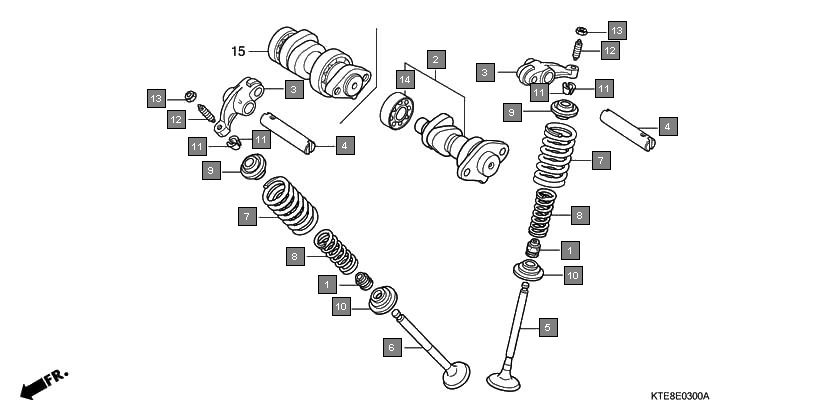

Motorcycles CB Shine CBF125A Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 14100KTE910 CAMSHAFT COMP. 1
3 14430KSP910 ARM COMP., VALVE ROCKER 2
4 14451KRM840 SHAFT, ROCKER ARM 2
5 14711KTE910 VALVE, IN. 1
6 14721KTE910 VALVE, EX. 1
7 14751KSP910 SPRING, VALVE OUTER 2
8 14761KSP910 SPRING, VALVE INNER 2
9 14771KSP910 RETAINER, VALVE SPRING 2
10 14777KSP910 SEAT, VALVE SPRING 2
11 14781MA6000 COTTER, VALVE 4
12 90012KK3830 SCREW, TAPPET ADJUSTING 2
13 90206250000 NUT, TAPPET ADJUSTING 2
14 961006001300 BEARING, RADIAL BALL, 6001 1
