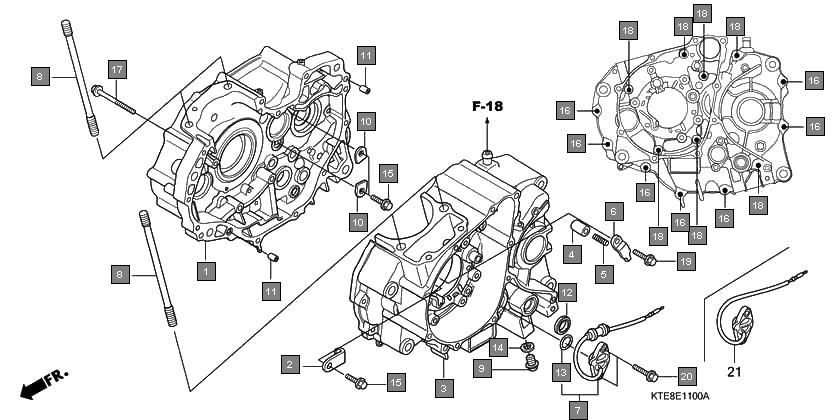

Motorcycles CB Shine CBF125MC9 Engine Crankcase
Ref.No. Part No. Description Oty
1 11100KSP910 CRANKCASE COMP., R. 1
2 11100KSP900 CRANKCASE COMP., R. 1
3 11108KTT900 PLATE, L. BEARING SETTING 3
4 11200KSP911 CRANKCASE COMP., L. 1
5 11200KSP901 CRANKCASE COMP., L. 1
6 11215KRM840 PLUG, BEARING PUSH 1
7 11216KRM840 SPRING, BEARING PUSH 1
8 11217KRM840 PLATE, BEARING PUSH 1
9 35750KTE910 SWITCH SET, NEUTRAL 1
10 90031KSP910 BOLT, CYLINDER STUD, 8X140 4
11 90131KRM840 BOLT, DRAIN PLUG, 12MM 1
12 90441KRM840 PLATE, BEARING HOLDER 2
13 91105KSP910 DOWEL PIN, 8X14 2
14 91203KSP911 OIL SEAL, 14X22X5(ARAI) 1
15 91305KPH900 O-RING, 19.4X2.3 1
16 9410912000 WASHER, DRAIN PLUG, 12MM 1
17 957010601600 BOLT, FLANGE, 6X16 5
18 957010604000 BOLT, FLANGE, 6X40 7
19 957010604500 BOLT, FLANGE, 6X45 1
20 957010607000 BOLT, FLANGE, 6X70 7
21 960010601800 BOLT, FLANGE, 6X18 1
22 960010602000 BOLT, FLANGE, 6X20 2
