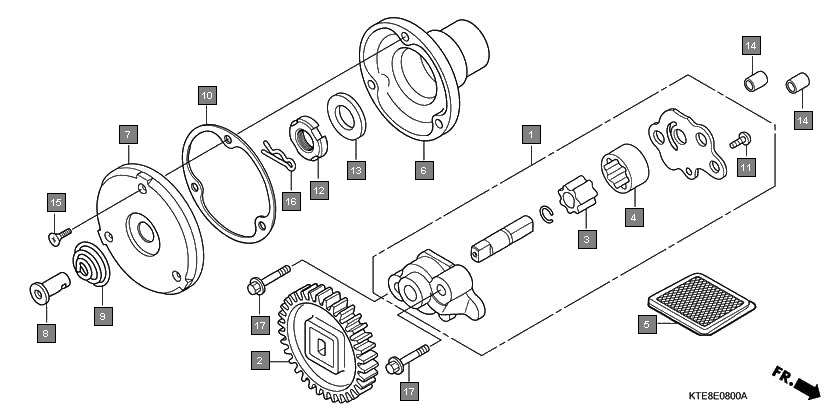

Motorcycles CB Shine CBF125MC9 Engine Oil pump
Ref.No. Part No. Description Oty
1 15100KTE910 PUMP ASSY., OIL 1
2 15130KTE910 GEAR COMP., OIL PUMP(34T) 1
3 15331KTE910 ROTOR, OIL PUMP INNER 1
4 15332KTE910 ROTOR, OIL PUMP OUTER 1
5 15421KSP910 SCREEN, OIL FILTER 1
6 15430KSP910 ROTOR, OIL FILTER 1
7 15436KRM840 CAP, OIL FILTER ROTOR 1
8 15441KCS650 THROUGH, OIL 1
9 15446107000 SPRING, OIL THROUGH 1
10 15459KT0710 GASKET, OIL FILTER CAP 1
11 90106GHRJ20 SCREW, TAPPING, 4X8 1
12 9390134120 SCREW, TAPPING, 4X8 1
13 90231KRM840 NUT, LOCK, 14MM 1
14 90432KPTA00 WASHER, 14.2X26X3 1
15 91105KSP910 DOWEL PIN, 8X14 2
16 93700050120A SCREW, OVAL, 5X12 3
17 9425108000 PIN, LOCK, 8MM 1
18 957010603500 BOLT, FLANGE, 6X35 2
