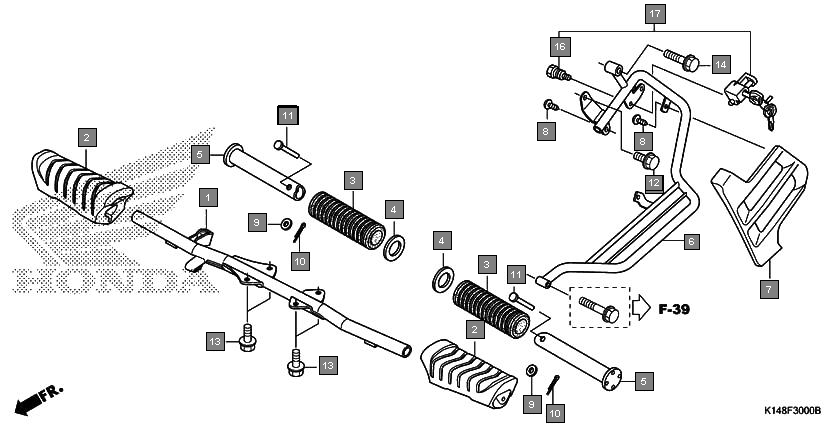

Motorcycles Dream Yuga CB110E Frame Step
Ref.No. Part No. Description Oty
1 50610K14900 BAR COMP., STEP 1
2 50661K14900 RUBBER, STEP 2
3 50710KTE910 RUBBER, PILLION STEP 2
4 50712405000 WASHER, PILLION STEP 2
5 50715405000 BAR, PILLION STEP 2
6 51103K14900 GUARD A, SARI 1
7 51104K14900 GUARD B, SARI 1
8 9390335220 SCREW, TAPPING, 5X12 2
9 9410106000 WASHER, PLAIN, 6MM 2
10 9420116120 PIN, SPLIT, 1.6X12 2
11 9501581000 PIN A, PILLION STEP 2
12 957010801400 BOLT, FLANGE, 8X14 1
13 957020801400 BOLT, FLANGE, 8X14 1
14 957020801808 BOLT, FLANGE, 8X18 4
15 957010801808 BOLT, FLANGE, 8X18 4
16 957020803500 BOLT, FLANGE, 8X35 1
17 957010803500 BOLT, FLANGE, 8X35 1
18 90107449000 BOLT, HELMET HOLDER SETTING 1
19 50730K14900 HOLDER SET, HELMET 1
