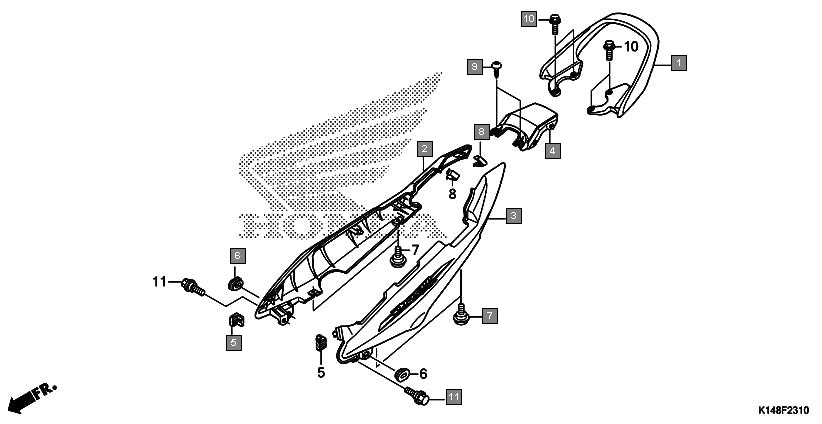

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50400K14900ZA | GRIP, RR. *YR305M* MAPLE BROWN METALLIC | 1 |
2 | 50400K14900ZD | GRIP, RR. *NH1* BLACK | 1 |
3 | 50400K14900ZF | GRIP, RR. *NHB04M* MONSOON GRAY METALLIC | 1 |
4 | 50400K14900ZC | GRIP, RR. *NH411M* FORCE SILVER METALLIC | 1 |
5 | 50400K14900ZE | GRIP, RR. *R316M* ALPHA RED METALLIC | 1 |
6 | 50400K14900ZG | GRIP, RR. *R321* SPORTS RED | 1 |
7 | 77240K14900ZE | COWL SET, R. SIDE(WL)*TYPE1* | 1 |
8 | 77240K14900ZC | COWL SET, R. SIDE(WL)*TYPE3* | 1 |
9 | 77240K14900ZB | COWL SET, R. SIDE(WL)*TYPE4* | 1 |
10 | 77240K14900ZD | COWL SET, R. SIDE(WL)*TYPE2* | 1 |
11 | 77240K14900ZA | COWL SET, R. SIDE(WL)*TYPE5* | 1 |
12 | 77250K14900ZC | COWL SET, L. SIDE(WL)*TYPE3* | 1 |
13 | 77250K14900ZE | COWL SET, L. SIDE(WL)*TYPE1* | 1 |
14 | 77250K14900ZB | COWL SET, L. SIDE(WL)*TYPE4* | 1 |
15 | 77250K14900ZD | COWL SET, L. SIDE(WL)*TYPE2* | 1 |
16 | 77250K14900ZA | COWL SET, L. SIDE(WL)*TYPE5* | 1 |
17 | 77280K14900ZC | COWL SET, RR. CENTER(WL)*TYPE3* | 1 |
18 | 77280K14900ZD | COWL SET, RR. CENTER(WL)*TYPE2* | 1 |
19 | 77280K14900ZA | COWL SET, RR. CENTER(WL)*TYPE5* | 1 |
20 | 77280K14900ZE | COWL SET, RR. CENTER(WL)*TYPE1* | 1 |
21 | 77280K14900ZB | COWL SET, RR. CENTER(WL)*TYPE4* | 1 |
22 | 83502KCC900 | GROMMET, SIDE COVER | 2 |
23 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 2 |
24 | 90101GE0000 | SCREW, HINGE PATCH | 4 |
25 | 90666SDAA01 | CLIP, SNAP FITTING(PO)(NATURAL) | 4 |
26 | 9390335280 | SCREW, TAPPING, 5X12 | 2 |
27 | 957010801808 | BOLT, FLANGE, 8X18 | 4 |
28 | 957020801808 | BOLT, FLANGE, 8X18 | 4 |
29 | 90111162000 | BOLT, FLANGE, 6MM | 2 |
