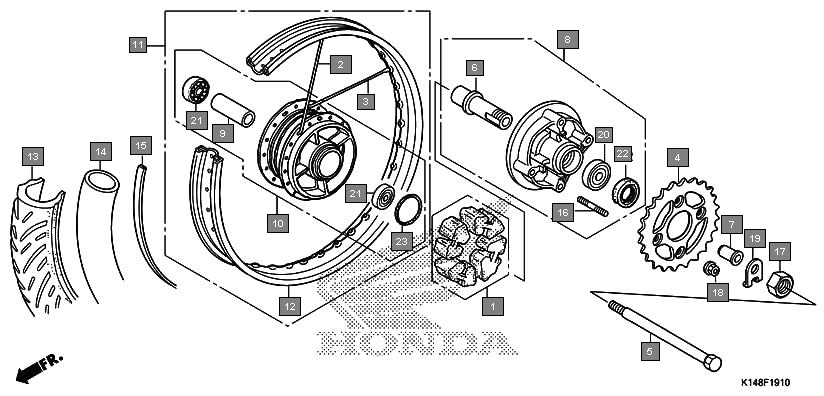

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06410KTE910 | DAMPER SET, WHEEL | 1 |
| 2 | 06420KSP900 | SPOKE SET A, RR.(OUTSIDE) | 18 |
| 3 | 06421KSP900 | SPOKE SET B, RR.(INSIDE) | 18 |
| 4 | 41201K14900 | SPROCKET, FINAL DRIVEN(41T) | 1 |
| 5 | 42301KZAW00 | AXLE, RR. WHEEL | 1 |
| 6 | 42303K14900 | SLEEVE, RR. WHEEL | 1 |
| 7 | 42304K14900 | COLLAR, RR. AXLE SLEEVE | 1 |
| 8 | 42615K23900 | FLANGE SUB ASSY., FINAL DRIVEN | 1 |
| 9 | 42620KTE950 | COLLAR, RR. AXLE DISTANCE | 1 |
| 10 | 42635KTE640ZC | HUB SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 11 | 42650KTE640ZC | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 12 | 42701KTE910 | RIM, RR. WHEEL(FOR FR.) | 1 |
| 13 | 42711KTE641 | TIRE, RR.(MRF)(80/100-18 M/C 54P) | 1 |
| 14 | 42712KTE640 | TUBE COMP., TUFF UP(80/100-18) | 1 |
| 15 | 06427KTE640 | TUBE SET, TUFF UP(80/100-18) | 1 |
| 16 | 42713KSP901 | FLAP, TIRE(1.60/1.85-18) | 1 |
| 17 | 90128KTE910 | BOLT, STUD, 8X20 | 4 |
| 18 | 90307KTE910 | NUT, RR. AXLE SLEEVE(17MM) | 1 |
| 19 | 90309KTE911 | NUT, FLANGE SPECIAL, 8MM | 4 |
| 20 | 90559KTR900 | WASHER, RR. AXLE | 1 |
| 21 | 91081KYJ711 | BEARING, RADIAL BALL, 6203UU (NEI) | 1 |
| 22 | 91051K23904 | BEARING, RADIAL BALL, 6203UU(FAG) | 1 |
| 23 | 91051K23902 | BEARING, RADIAL BALL, 6203UU(SKF) | 1 |
| 24 | 91051KWF901 | BEARING, RADIAL BALL, 6203UU(NSK) | 1 |
| 25 | 91052KWF901 | BEARING, RADIAL BALL, 6301U (NSK) | 2 |
| 26 | 961406301010 | BEARING, RADIAL BALL, 6301U | 2 |
| 27 | 91251KGH901 | DUST SEAL, 27X40X4.5(ARAI) | 1 |
| 28 | 91304704000 | O-RING, 42MM | 1 |
