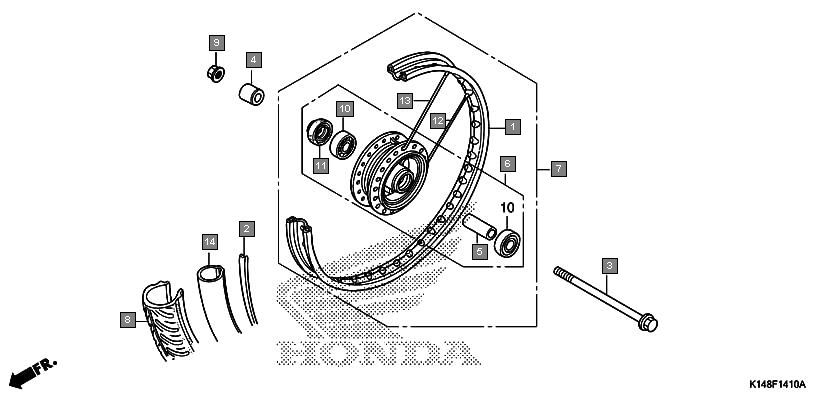

Motorcycles Dream Yuga CB110E Frame Front wheel(cb110-id/3id)
Ref.No. Part No. Description Oty
1 42701KTE910 RIM, RR. WHEEL(FOR FR.) 1
2 42713KSP901 FLAP, TIRE(1.60/1.85-18) 1
3 44301KPL900 AXLE, FR. WHEEL 1
4 44311KSP900 COLLAR, FR. WHEEL SIDE 1
5 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
6 44635KTE640ZC HUB SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC 1
7 44650KTE640ZC WHEEL SUB ASSY., FR. *NH303M* MAT AXIS GRAY METALLIC 1
8 44711KTE641 TIRE, FR.(MRF)(80/100-18 M/C 47P) 1
9 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
10 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
11 961406301010 BEARING, RADIAL BALL, 6301U 2
12 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
13 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
14 9733441166P0 SPOKE SET A, 10X163(INSIDE) 18
15 9760041165P0 SPOKE SET A, 10X162.5(OUTSIDE) 18
16 44712KTE641 TUBE(2.75-18) 1
